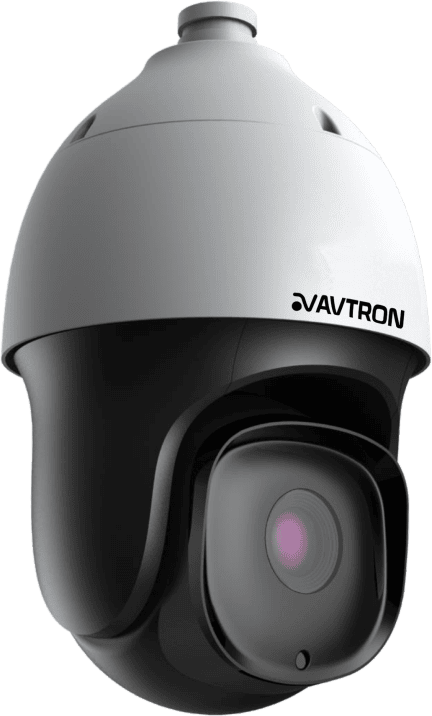

Camera Specification

Sensor type

1/2.8" progressive scan CMOS image sensor

Lux level

Color 0.002lux, B/W 0.001lux at F1.5, AGC on, 0lux at IR On

Shutter speed control

Auto/Manual/Shutter or Iris first, Range 1/1s ~ 1/100000s

Gain control(AGC)

Auto/Manual

Lens

F = 4.7mm ~ 155mm

Optical zoom ratio

33X Optical, 16X Digital

Angle of view

Horizontal : 60.5°(Wide) ~ 2.3°(Tele)

Aperture range

F1.5 ~ F4.0

Zooming speed

Approx. 5s(Optical mode wide-tele)

Minimum working distance

1-1.5mtr(wide-tele)

Auto focus

Auto/ Semi-automatic/ Manual

IRIS control

Auto/Manual

SN ratio

≥ 55dB

Signal system

PAL/NTSC

IR functions

up to 180 to 200mtrs., Smart IR control, IR LED adjustable according Zoom length, ICR

On Screen Display

WDR

140dB, Auto/Manual adjustable

Day/Night

Auto(Outside/Inside), Color, B/W, Sensitivity adjustable

Digital noise reduction

3DNR (Close/Ordinary/Expert)

Light compensation

BLC Off/On, HLC Off/On adjustable

White balance

Auto/Manual/Lock/Nature/Sunshine/Day Light/Warm light

Other functions

Smart Defog control, EIS(Image Stabilizer), Flip control, Privacy masking

Motion detection

Yes, Zones :396(22x18), Sensitivity level 1~ 100

Image control

Brightness, Contrast, Sharpness, Saturation

OSD display

16×16,32×32,24×24,48×48,64×64 character size 5 area arrangement @ Time/Date/Week/Character/PTZ angle

Compression/Video/Audio

Video compression

H.265+, H.265, H.264, MJPEG, H.264 Main/High/Baseline profile

Video resolution

2MP(1920x1080)/1.3MP/1MP/D1/2CIF/CIF/VGA

Main stream

1080P(1920x1080)/960P(1280x960)/720P(1280x720)/D1(704x576)

Second stream

D1(704*576)/2CIF(704x288)/CIF(352x288)/QCIF(172x144)

Third stream

1080P(1920x1080)/960P(1280x960)/720P(1280x720)/D1(704x576)

Record & Live frame rate

Selectable 1 ~ 50/60 fps @ main/second stream resolution

Bit Rate

32Kbps ~ 16Mbps, VBR/CBR, I-Frame interval

Audio compression & bitrate

G.711/G.726/ADPCM & 8K~48Kbps

Video Analysis

Intelligent video analysis

Manual Tracking, Auto tracking, Panaromic tracking, Linkage Tracking.

Analytics setting

Tripwire, Double Tripwire, Perimeter, Object Left & Lost, Running, Loitering, Parking, Crowd, Audio & Video Abnormal detection, Scene change, Blur image

iVA trigger

Target Size/Sensitivity/Background to Foreground difference/Target frame

Intelligent alarm

Record/Snapshot/PTZ Control/Link out/Autotracking

Alarm & IVA trigger

On-screen alerts/PTZ trigger/Link out/E-MAIL/FTP upload/Pre-Post record

Corridor control

Yes(supported format 16:9, 9:16)

Region of Interest(ROI)

7 Dynamic Areas for Both Main and Sub Stream

Advanced warning

N.A

Smart Tracking

Manual Tracking, Auto tracking, Panaromic tracking, Linkage Tracking.

Software Support

Onvif

YES, Profile S

CMS software

iCRYS Series, up to 256CH(IP+NVR+Matrix)

3rd Party VMS/NVR /CMS

Onvif/SDK/CGI

Mobile

Android /iOS through NVR, P2P cloud support

User login

32 User / 4 level of rights, Simultaneous login <5 User client

Snap shots

Schedule, Link with FTP or Email

Encryption

Off/AES

Network, Storage, Interface

Protocol

HTTP,802.1x,FTP,SMTP,UPnP,SNMP,DNS,DDNS,PPPoE,NTP,RTSP,TCP,UDP,DHCP

Storage

Micro SD/SDHC/SDXC slot(128Gb)

Pre & Post recording

Pre : 5 to 15sec, Post : 10 to 60 sec

Storage function

ANR(auto download in NVR), Manual & Alarm recording

Network storage

FTP(pre & post upload)

LAN port

1x Port RJ-45, 10M/100M ethernet

Audio Input

1Ch input & 1Ch output

Alarm

1Ch input & 1Ch output

Other ports

N.A

Pan/Tilt/Alarm

Pan/Tilt range

Pan 360°(Endless) / Tilt -16° ~ 90°(auto flip)

Pan speed

Manual 0.1°-240°/sec, Preset speed: 240°/s

Tilt speed

Manual : 0.1°-240°/s, Preset speed: 240°/s

Preset accuracy

±0.02°

Preset

500 Preset

Patterns

8nos, each with 600s memory or 300 orders

Cruise

8,nos Up to 32 presets per cruise

Scan

8 Setup

OSD function

Various languages, Camera & Video parameter

Special function

3D Positioning, Power off memory

Home guard function

Link @ preset/ scan/ cruise/ pattern

Other function

FAN

General

Power supply

PoE+, AC24V 3A(optional power adaptor)

Power consumption

<19W at IR Off, <33W @ IR On

Voltage protection

TVS 6000V, Lightning/Surge 2000V(power) 1000V(RJ45)

Language

English, Spanish, Korean, Italian, Russian, Chinese, etc.

IP & Vandal protection

IP66

Operating temp. & humidity

-40°C ~ 70°C & 0% ~ 95% RH

Enclosure

Metal housing, with IP66 protection.

Weight (g) & Dimension

<6Kg camera, Ø225(D) X 375mm (H)

Mounting bracket

Wall, Pendant, Pole, Corner Mount(Optional)
