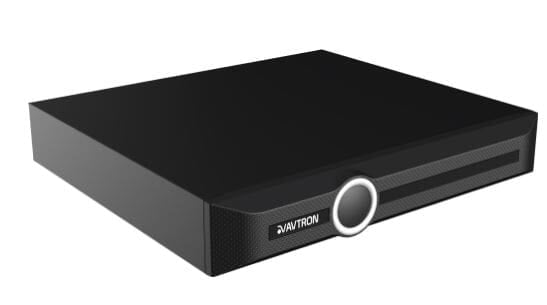

AM-i220-UHD
AM-i220-UHD
20Ch H.265+ 4K Intelligent NVR
Categories:
- Latest H.265+ HEVC Hardware compression along with H.264
- Main/High/Base Profile
- 4K 8MP/6MP/5MP/4MP/3MP/1080P/720P/4CIF IP Camera Input
- 20Ch Real-time display on Single screen
- Up to 20TB storage capacity
Rs.17,200.00 Rs.18,644.07
Choose Quantity
Product Details
| System | |
| Video compression | H.265+ HEVC, H.264 Hardware Compression |
| Audio compression | ADPCM-DV14/G.711A/G.711U |
| Operation system | Embedded Linux |
| Signal system | Auto Detect |
| Bandwidth throughput | 160Mbps(Incoming 80Mbps) |
| Remote connections | 64Channels |
| Record/Playback/Streaming | |
| IPC input | 20CH @ 4K/6MP/5MP/4MP/3MP/2MP/720P/4CIF |
| Live Screen window | 20CH/16CH/10CH/9CH/8CH/6CH/4CH/1CH |
| Live resolution | 20CH @4CIF, 8CH/4CH at 1080P, 1CH@4K/6MP Realtime display |
| Record resolution | 4K 8MP/6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Record frame rate | Mainstream 25fps(P)/30fps(N), Sub stream 25fps(P)/30fps(N) |
| Record function | Smart Record, Records Encryption, Records TAG, One Key Start Recording, Trigger Recording |
| Smart record | Different recording bitrate at different time zone, i-Frame recording only record key frame to lower frame rate |
| Trigger record | Manual/Timing/Motion Detection/Port Alarm/ IVA Alarm/Video Occlusion |
| Playback channel | 16CH @1080P/720P/D1, 8CH @4MP/3MP, 4CH @4K/6MP/5MP |
| Smart search | YES, Quickly search target iVA videos , Only for iCRYS series cameras |
| Playback function | Play, Pause, Stop, Rewind, Fast, Slow, Next & Previous File/Camera, Full screen, Repeat, Shuffle, Backup selection, Digital Zoom |
| Instant Access Function | Quick playback up to last 5min, Quick backup |
| Record quality | Best/Better/Good/Normal/Worst |
| Record stream Bitrate | VBR/CBR (32 ~ 16384Kb/s) |
| Sub stream | D1/CIF/QCIF, Frame rate selectable |
| Pre & Post alarm record | Pre : 10 ~ 600 sec, Post : 5 ~ 60sec |
| Array & Storage | |
| Array method | - |
| Raid management | - |
| Redundant recording | - |
| Hot backup disk | - |
| Hot Swap | - |
| Hot standby | - |
| Hard disk interface | 2HDD (SATA Port) |
| Hard disk capacity | Max. up to 10TBEach Port |
| E-SATA interface | - |
| Management Function | HDD Grouping and Quota, SMART HDD Check, Record file TAG, File lock |
| ANR | Download Stored Video Automatically from Camera SD Card, When NVR Online |
| Intelligent Analytics Functions | |
| Video Analytics | All Channel Tripwire/Double tripwire/intelligenct tracking/Heat map/Object left and lost/Running/Loitering/Parking/Early warning/Crowd/Face detection/People counting/Perimeter/Audio and Video abnormal detection/On duty Detection |
| Video diagnosis | Video color cast detection, Noise Detection, Electromagnetic interference testing, Fuzzy video Detection |
| Motion detection | - |
| Motion detection | - |
| HDD alarm trigger | Disk Full, No Disk, Disk R/W Error, Redundancy Error |
| Intelligent alarm | - |
| Event & Alarm trigger | E-MAIL, Snap, NVR Sound Buzzer, OSD, Alarm Server Devices, Video Recording, Alarm Out, PTZ Trigger |
| Network alarm trigger | illegal Access, IP Address Conflict, Network Lost, MAC Conflict |
| Icrys Series camera Function | Corridor Control, Plug & Play, Image Flip, one key control, |
| Private functions | - |
| Alarm trigger | Local Alarm Port Out, NVR Sound Buzzer, OSD, Alarm Server Devices |
| Video/Audio/Interface | |
| Network | RJ45 Port 10/100MBPS |
| HDMI output | 3840×2160,2560×1600, 1920x1080,1280x720, 1280x800,1366x768,800x600,1024x768,1440x900 Adjustable Output, Self-detection |
| VGA output | 1920x1080,1280x720,1280x800,1366x768, 800x600,1024x768,1440x900 Adjustable Output, Self-detection |
| Alarm | 1Ch outputs, 3P Connector, 0V Signal |
| Audio | 1Ch input, 3.5mm Jack( Intercom), 1Ch output |
| Communication Protocol | - |
| USB | 2x USB2.0 |
| Network protocol | TCP/UDP/MULTICAST/UPNP/HTTP/DHCP/PPPoE/DDNS/NTP/ HTTPS/NFS/FTP/RTSP/SMTP/HTTPS/SADP, Alarm Server, Auto Search iCRYS Series IP Camera |
| Backup | - |
| FTP & E-Mail alert | - |
| Key functions | - |
| Snap shot | Schedule, Link with FTP or Email |
| Backup | - |
| OSD Setups | Channel Wise Color/Position/Transparency/Text/Masking/Date & Time Format |
| Log generation | Channel, Event based, Date and Time selection, Export |
| Software Supports | |
| Onvif compliant | Yes, Profile S |
| Key function | One key record, One key intercom, Digital zooming |
| P2P cloud | I-Phone, IPAD, Android, Record, Playback, Push Notification, Device controls |
| Web browser | IE, Safari, Chrome, Edge |
| Other functions | E-MAIL Alert, FTP upload |
| General | |
| Power supply | DC12V 3A |
| Power consumption | <30W without HDD |
| Language | English, Spanish, French, German, Chinese & Many More |
| Operation conditions | -10 ℃ ~ +55 ℃ (+14 F~ + 131 F), 10% ~ 90% RH |
| Enclosure | 1U, Black color, Metal case |
| Weight (g) & Dimension | <2.5Kg, 345(D) x 275(W) x 48mm(H) |
