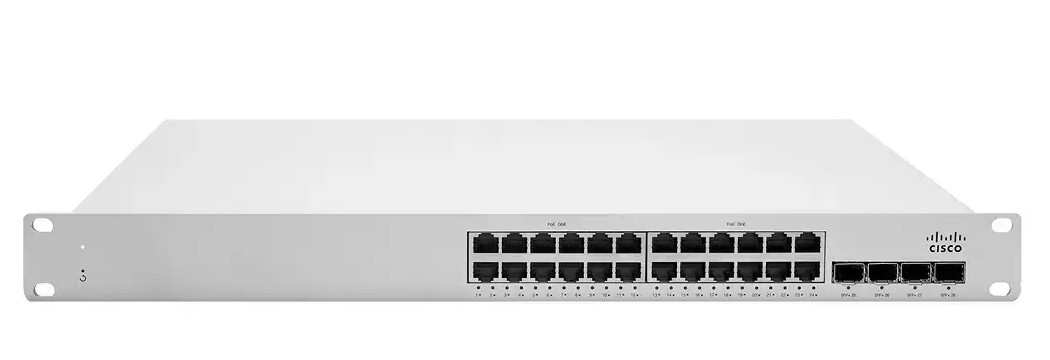

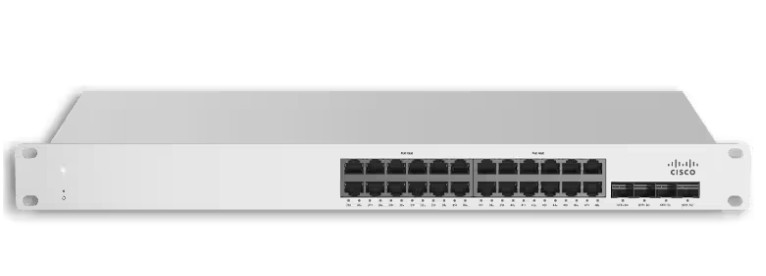

Cisco MS225-24 Layer 2 switch

Hardware Breakdown

MS225-24

1GbE RJ45

24

10GbE SFP+

4

Hardware Stack Port

2

Dedicated Mgmt Interface

1

Fan Operation

Fanless Operation

Power Supply

Fixed Internal

Redundant Power Supply

External RPS* (optional)

PoE/PoE+ Capable

-

Layer 3 Routing

Static Routing

Switching Capacity

128 Gbps

Stacking Bandwidth

80 Gbps

Mount Type

1U Rack Mount

Dimensions (h x w x d)

1.72 x 19 x 9.05in  (4.38 x 48.46 x 23cm)

Weight

6.03 lb (2.73 kg)

Power Load (idle/max)

15 / 24 W

Operating Temperature

23 °F - 122 °F  -5°C - 50°C

Humidity

5% to 95%

Function

LED Status

Meaning

Power

Solid orange

Switch is unable to connect to the Meraki cloud

Flashing white

Firmware upgrade in process

Solid white

Switch is fully operational and connected to the Meraki cloud

Off

Switch does not have power

Restore

N/A

Restore button to clear switch IP and local configuration settings

Switch Ports

Off

No link is detected on this port

Solid orange

10/100 Mbps (1 Gbps on SFP+)

Solid green

1 Gbps (10 Gbps on SFP+)

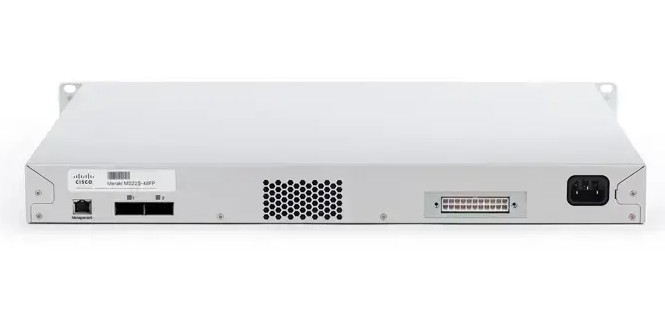

Back Panel Components

Management Interface

Green

Connected, used for easy access to the local status page

Stack Ports

Green

QSFP stacking cable is connected

Off

No link is detected on this port

22-Pin Redundant Power Supply Connector

N/A

RPS2300 can be connected to provide redundant power in case of a failover
