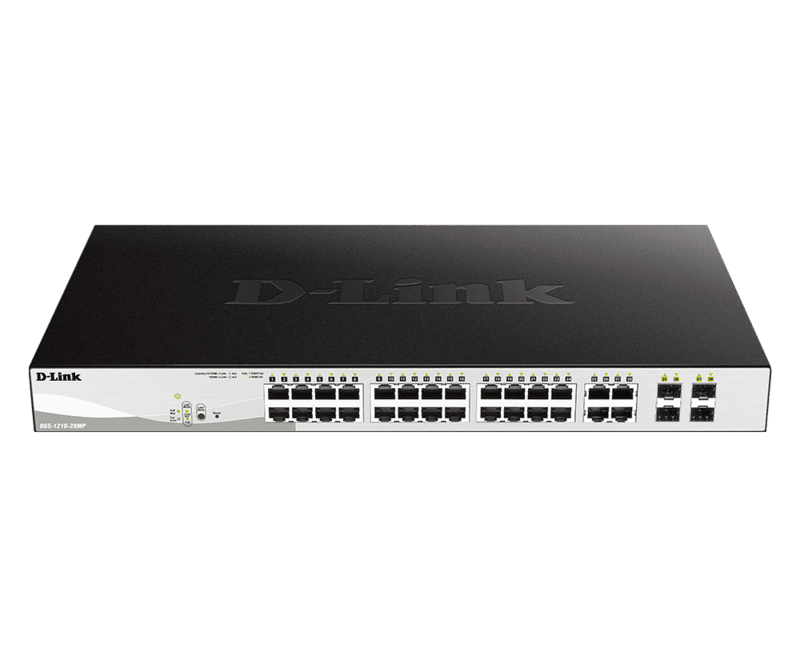

| D-Link DGS-1210 Specificatins |
|---|
| | DGS-1210-10P | DGS-1210-28P | DGS-1210-52MP |
| General |
| Number of Ports | - 8 10/100/1000 Mbps PoE
- 2 SFP
| - 24 10/100/1000 Mbps PoE
- 4 SFP
| - 48 10/100/1000 Mbps PoE
- 4 SFP
|
| Port Standard & Functions | - IEEE 802.3 10BASE-T Ethernet
- IEEE 802.3u 100BASE-TX (Fast Ethernet)
- IEEE 802.3ab 1000BASE-T (Gigabit Ethernet)
- IEEE 802.3x Flow Control for Full-Duplex Mode
- IEEE 802.3af compliance
- IEEE 802.3at compliance
- Auto-negotiation
|
| Network Cables | - UTP Cat. 5, Cat. 5e (100 m max.)
- EIA/TIA-568 100-ohm STP (100 m max.)
|
| Full/Half Duplex | - Full/half duplex for 10/100 Mbps speeds
- Full duplex for Gigabit speed
|
| Media Interface Exchange | Auto or configurable MDI/MDIX |
| Performance |
| Switching Capacity | 40 Gbps | 56 Gbps | 104 Gbps |
| Transmission Method | Store-and-forward |
| MAC Address Table | 16,000 entries per device |
| MAC Address Update | - Up to 256 static MAC entries
- Enable/disable auto-learning of MAC addresses
|
| Maximum 64 bytes packet forwarding rate | 14.88 Mpps | 41.7 Mpps | 77.4 Mpps |
| Packet Buffer Memory | 1.5 MB | 1.5 MB | 3.0 MB |
| PoE |
| PoE Standard | IEEE 802.3af and IEEE 802.3at |
| PoE Capable Ports | Ports 1 to 8: Up to 30 W | Ports 1 to 4: Up to 30 W
Ports 5 to 24: Up to 15.4 W | Ports 1 to 8: Up to 30 W
Ports 9 to 48: Up to 15.4 W |
| PoE Power Budget | Max. 78 W | Max. 193 W | Max. 370 W |
| Physical & Environmental |
| AC Input | 100 to 240 VAC 50/60Hz internal power supply |
| Maximum Power Consumption | 103.4 W (PoE on),
17.9 W (PoE off) | 251.3 W (PoE on),
21.9 W (PoE off) | 483.1 W (PoE on),
48.9 W (PoE off) |
| Standy Power Consumption | 10.3 W/110 V, 11.1 W/240 V | 24 W/110 V, 21.9 W/240 V | 29.5 W/110 V, 27.5 W/240 V |
| Fan Quantity | 0 | Two smart fans | Three smart fans |
| Acoustics | 0 dB(A) | Low speed: 47 dB(A)
High speed: 52.4 dB(A) | Low speed: 40.4 dB(A)
High speed: 50.1 dB(A) |
| Heat Dissipation | 352.63 BTU/hr | 840.89 BTU/hr | 1648.23 BTU/hr |
| Operating Temperature | 23 to 122 ˚F (-5 to 50 ˚C) |
| Storage Temperature | -4 to 158 ˚F (-20 to 70˚C) |
| Operating Humidity | 0% to 95% non-condensing |
| Storage Humidity | 0% to 95% non-condensing |
| Dimensions (W x D x H) | 11.02 x 7.08 x 1.73 inches (280 x 180 x 44 mm)
19” standard rack mounting width, 1U height | 17.32 x 8.27 x 1.73 inches (440 x 210 x 44 mm)
19” standard rack mounting width, 1U height | 17.32 x 16.9 x 1.73 inches (440 x 430 x 44 mm)
19” standard rack mounting width, 1U height |
| Weight | 3.1 lbs (1.41 kg) | 5.60 lbs (2.54 kg) | 12.74 lbs (5.78 kg) |
| Diagnostic LEDs | - Power (per device)
- PoE Max (per Device)
- Link/Activity/Speed (per 10/100/1000Base-T port)
- Link/Activity/Speed (per SFP port)
- Fan (per device)
- Button to switch LED display mode between PoE and Link/Activity
|
| MTBF | 315,336 hours | 239,236 hours | 318,616 hours |
| Certifications | - FCC Class A
- CE Class A
- ICES-003
- VCCI Class A
- C-Tick
- BSMI
|
| Safety | |
| Software Features |
| L2 Features | - MAC Address Table
- Flow Control
- 802.3x Flow Control
- HOL Blocking Prevention
- IGMP Snooping
- IGMP v1/v2 Snooping
- Supports 256 IGMP groups
- Supports at least 64 static multicast addresses
- IGMP per VLAN
- Supports IGMP Snooping Querier
- Loopback Detection
- Spanning Tree Protocol
- 802.3ad Link Aggregetion
- DGS-1210 28/28P: Maximum of 14 groups/8 ports per group
- DGS-1210 52/52MP: Maximum of 26 groups/8 ports per group
- DGS-1210 -10/10P: Maximum of 5 groups/8 ports per group
- LLDP
- LLDP-MED
- Jumbo Frame
- Spanning Tree Protocol
- Flow Control
- 802.3x Flow Control
- HOL Blocking Prevention
- Port Mirroring
- One-to-One
- Many-to-One
- Supports Mirroring for Tx/Rx/Both
- Multicast Filtering
- Forwards all unregistered groups
- Filters all unregistered groups
- Configurable MDI/MDIX
- MLD snooping v1/v2 (256 groups)
|
| VLAN | - 802.1Q
- VLAN Group
- Max 256 static VLAN groups
- Max 4094 VIDs
- Management VLAN
- Asymmetric VLAN
- Auto Voice VLAN
- Max. 10 user defined OUI
- Max. 8 default OUI
- Auto Surveillance VLAN
|
| QoS (Quality of Service) | - 802.1p Quality of Service
- 8 Queues per port
- Queue Handling
- Strict
- Weighted Round Robin (WRR)
- Bandwidth Control
- Port-based (Ingress/Egress, min. granularity 64 Kb/s)
- QoS based on:
- 802.1p Priority Queues
- DSCP
- ToS
- IPv6 Traffic Class
- TCP/UDP port
|
| L3 Features | - IP Interface
- IPv6 Neighbor Discovery (ND)
|
| Access Control List | - Max. 50 access list
- Max. 768 rules shared by IPv4, MAC and IPv6
- Each rule can only be associated with a single port
- ACL based on
- 802.1p priority
- VLAN
- MAC address
- Ether type
- IP address
- DSCP
- Protocol type
- TCP/UDP port number
- IPv6 Traffic Class
|
| Security | - Broadcast/Multicast/Unicast Storm Control
- D-Link Safeguard Engine
- DHCP Server Screening
- IP-MAC-Port Binding (Smart Binding)
- Supports 512 address binding entries
- ARP Inspection
- ARP + IP Inspection
- Supports DHCP Snooping
- 802.1X Port-based Access Control
- ARP Spoofing Prevention
- Traffic Segmentation
- SSH v2
- SSL
- Port Security
- Supports up to 64 MAC addresses per port
- Duplicate address detection
|
| AAA | - 802.1X Authentication
- Supports local/RADIUS database
- Supports port-based access control
- Supports EAP, OTP, TLS, TTLS, PEAP
- IPv6 RADIUS Server
- Support MD5 authentication
|
| OAM | - Cable Diagnostics
- Factory Reset
|
| MIB/RFC Standards | - RFC 783 TFTP
- RFC 951 BootP/DHCP Client
- RFC 1157 SNMP v1, v2, v3
- RFC 1213 MIB II
- RFC 1215 MIB Traps Convention
- RFC 1350 TFTP
- RFC 1493 Bridge MIB
- RFC 1769 SNTP
- RFC 1542 BootP/DHCP Client
- RFC 1901 SNMP v1, v2, v3
- RFC 1907 SNMP v2 MIB
- RFC 1908 SNMP v1, v2, v3
- RFC 2131 BootP/DHCP Client
- RFC 2138 RADIUS Authentication
- RFC 2139 RADIUS Authentication
- RFC 2233 Interface Group MIB
- RFC-2246 SSL
- RFC 2475
- RFC 2570 SNMP v1, v2, v3
- RFC 2575 SNMP v1, v2, v3
- RFC 2598 CoS
- RFC 2618 RADIUS Authentication
- RFC 2819 RMON v1
- RFC 2865 RADIUS Authentication
- RFC 3164 System Log
- RFC 3195 System Log
- RFC 3411-17 SNMP
- D-Link Private MIB
- LLDP MIB
- Zone Defense MIB
- 2233 Interface Group MIB
|
| Management | - Web-based GUI
- D-Link Network Assistant Utility
- Compact CLI
- Telnet Server
- TFTP Client
- Configurable MDI/MDIX
- SNMP
- SNMP Trap
- Backup/Upgrade firmware
- Smart Wizard
- Upload/Download Configuration file
- System Log
- BootP/DHCP Client
- SNTP
- ICMP v6
- IPv4/v6 Dual Stack
- DHCP Auto Configuration
- Time Setting
- RMONv1
- Trusted Host
|
| D-Link Green 3.0 Technology | - Power Saving by:
- Link Status
- Time-based PoE: PoE ports can be turned on/off by port or system through schedule
- LED Shutoff
- System Hibernation
- Port Shutoff
|
