One 8-pin for PSU, one 4-pin for CPU, one 6-pin for SATA power
Table 12. Controls and lights
Feature
Specification

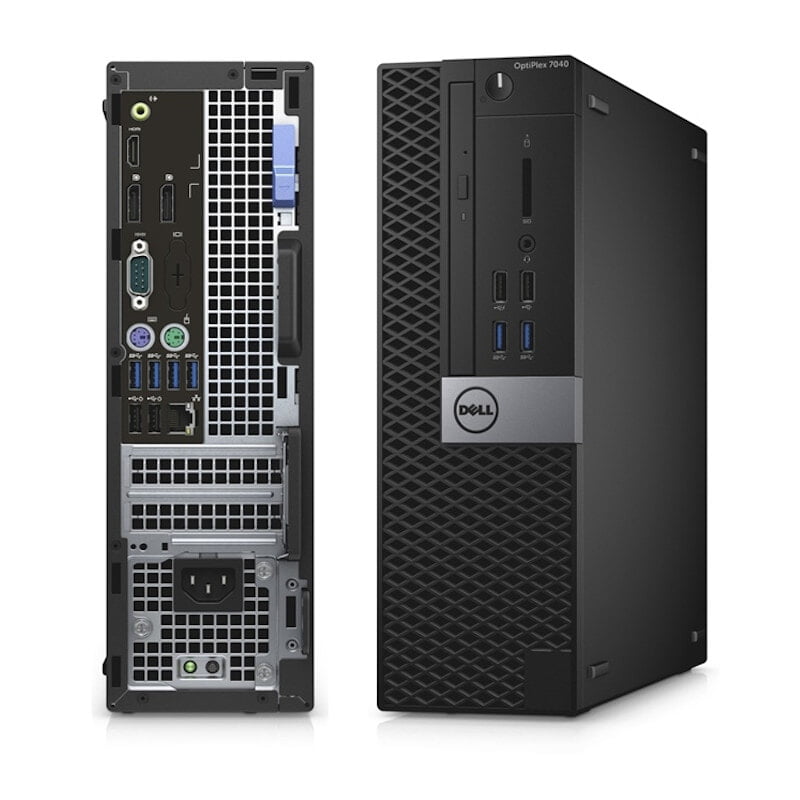

Front of the computer
Power button light
White light — Solid white light indicates power-on state; slow blinking white light indicates sleep state of the computer.
Drive activity light
White light — Slow blinking white light indicates that the computer is reading data from or writing data to the hard drive.
Back of the computer
Link integrity light on integrated network adapter
Green — a 10 Mbps connection exists between the network and the computer.
Green — a 100 Mbps connection exists between the network and the computer.
Orange — a 1000 Mbps connection exists between the network and the computer.
Off (no light) — the computer is not detecting a physical connection to the network.
Network activity light on integrated network adapter
Yellow light — A blinking yellow light indicates that network activity is present.
Power supply diagnostic light
Green light — The power supply is turned on and is functional. The power cable must be connected to the power connector (at the back of the computer) and the electrical outlet.
Table 13.Power
Heat dissipation is calculated by using the power supply wattage rating.
Power
Wattage
Maximum Heat Dissipation
Voltage
180 W
614 BTU/hr
100 V AC to 240 V AC, 50 Hz to 60 Hz, 3A/1.5A
Coin cell battery
3 V CR2032 lithium coin cell
Table 14. Physical dimension
Feature
Specifications
Height
290.00 mm (11.42 inches)
Width
93.00 mm (3.66 inches)
Depth
312.00 mm (8.38 inches)
Weight
6.00 kg (13.22 lb)
Table 15. Environmental
Feature
Specification
Temperature range
Operating
5°C to 35°C (41°F to 95°F)
Storage
–40°C to 65°C (–40°F to 149°F)
Relative humidity (maximum)
Operating
20 percent to 80 percent (non-condensing)
Storage
5 percent to 95 percent (non-condensing)
Maximum vibration
Operating
0.26 Grms
Storage
2.20 Grms
Maximum shock
Operating
40 G
Storage
105 G
Altitude
Operating
–15.2 m to m (–50 to ft)
Storage
–15.20 m to 10,668 m (–50 ft to 35,000 ft)
Airborne contaminant level
G1 or lower as defined by ANSI/ISA-S71.04-1985
