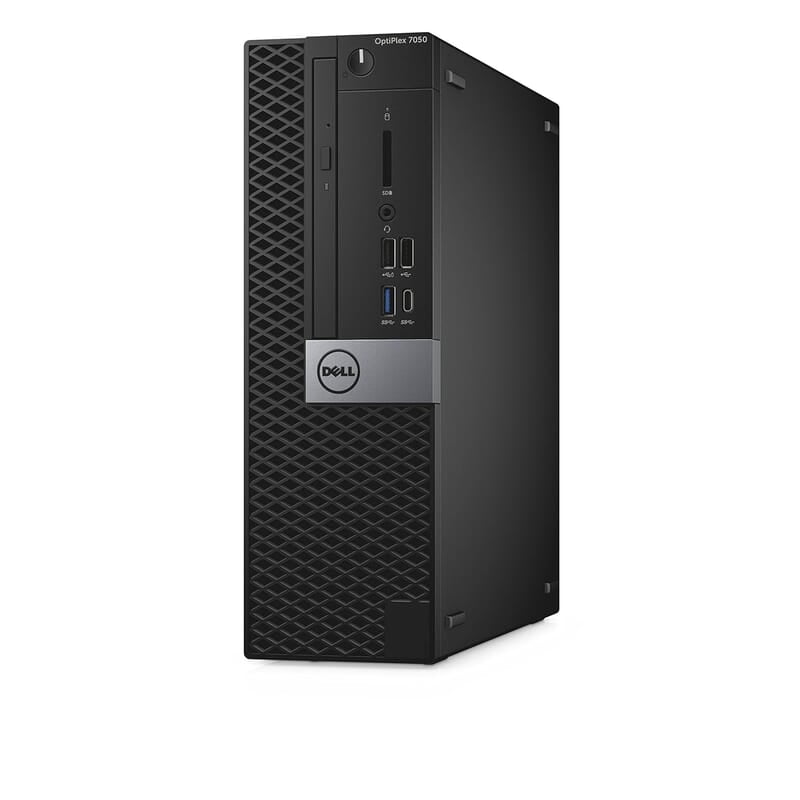

Dell OptiPlex 7050 SFF

Name: Dell OptiPlex 7050 SFF
Price: 13000.0 INR
Availability: InStock

Rs.13,000.00 Rs.25,000.00

Add to Cart. . .

Product Details

Table 1. Processor

Feature	Specification
Processor type	6th Gen Intel Core i5-6500 (QC/6MB/4T/3.2GHz/65W)
Total cache	Up to 8 MB cache depending on processor type

Table 2. Memory

The minimum memory may differ based on the operating system installed on the computer.
Maximum memory	64 GB

Each UDIMM slot supports a minimum of 4 GB and a maximum of GB.

Table 3. Video

Feature	Specification
Integrated	Intel HD Graphics 630 Graphics
Discrete	PCI Express x16 graphics adapter

Table 4. Audio

Feature	Specification
Integrated	Two channel High Definition Audio

Table 5. Network

Feature	Specification
Integrated	Intel I219-LM Ethernet capable of 10/100/1000 Mb/s communication

Table 6. System information

Feature	Specification
System chipset	Intel 100 series, Q170
DMA channels	Two 8237 DMA controllers with seven independently programmable channels
Interrupt levels	Integrated I/O APIC capability with 24 interrupts
BIOS chip (NVRAM)	16 MB

Table 7. Expansion bus

Feature	Specification
Bus type	PCIe gen3 (x16), USB 2.0, and USB 3.0
Bus speed	PCI Express: x4-slot each direction speed – up to 3.94 GB/s x16-slot each direction speed–16 GB/s
	SATA: 1.5 Gbps, 3.0 Gbps, and 6 Gbps

Table 8. Cards

Feature	Specification
PCI express x4	Half height card
PCI express x16	Half height card

Table 9. Drives

Feature	Specification
Externally accessible (5.25-inch drive bays)	Two
Optical drive	One

Table 10. External connectors

Feature	Specification
Audio
	Front panel	Universal Audio Jack
	Back panel	Line out connector
Network adapter	RJ-45 connector
Serial	9-pin connector; 16550 C compatible
Parallel	25-pin connector (optional)
USB 2.0	Front panel: two Back panel: two
USB 3.0	Front panel: two Back panel: four
Video	19-pin HDMI connector Two 20-pin DisplayPort connectors 15-pin VGA connector (optional) Available video connectors may vary based on the graphics card selected.

Keyboard and mouse

Back panel:

Table 11. Internal connectors

Feature	Specification
PCI Express x16 (wired as x4) data width (maximum) — four PCI Express lanes	164-pin connector
PCI Express x16 data width (maximum) — 16 PCI Express lanes	164-pin connector
Serial ATA	Three 7-pin connectors
Memory	Four 288-pin connectors
Internal USB	10-pin connector
System fan	4-pin connector
SSD	M.2 22x80 socket3
Front panel control	5-pin connector
Processor	1151-pin connector
Processor fan	4-pin connector
Service mode jumper	2-pin connector
Password clear jumper	2-pin connector
RTC reset jumper	2-pin connector
Internal speaker	4-pin connector
Intruder connector	3-pin connector
Power connector	One 8-pin for PSU, one 4-pin for CPU, one 6-pin for SATA power

Table 12. Controls and lights

Feature	Specification
Front of the computer
	Power button light	White light — Solid white light indicates power-on state; slow blinking white light indicates sleep state of the computer.
	Drive activity light	White light — Slow blinking white light indicates that the computer is reading data from or writing data to the hard drive.
Back of the computer
	Link integrity light on integrated network adapter	Green — a 10 Mbps connection exists between the network and the computer. Green — a 100 Mbps connection exists between the network and the computer. Orange — a 1000 Mbps connection exists between the network and the computer. Off (no light) — the computer is not detecting a physical connection to the network.
	Network activity light on integrated network adapter	Yellow light — A blinking yellow light indicates that network activity is present.
	Power supply diagnostic light	Green light — The power supply is turned on and is functional. The power cable must be connected to the power connector (at the back of the computer) and the electrical outlet.

Table 13.Power

Heat dissipation is calculated by using the power supply wattage rating.
Power	Wattage	Maximum Heat Dissipation	Voltage
	180 W	614 BTU/hr	100 V AC to 240 V AC, 50 Hz to 60 Hz, 3A/1.5A
Coin cell battery	3 V CR2032 lithium coin cell

Table 14. Physical dimension

Table 15. Environmental

Feature	Specification
Temperature range
	Operating	5°C to 35°C (41°F to 95°F)
	Storage	–40°C to 65°C (–40°F to 149°F)
Relative humidity (maximum)
	Operating	20 percent to 80 percent (non-condensing)
	Storage	5 percent to 95 percent (non-condensing)
Maximum vibration
	Operating	0.26 Grms
	Storage	2.20 Grms
Maximum shock
	Operating	40 G
	Storage	105 G
Altitude
	Operating	–15.2 m to m (–50 to ft)
	Storage	–15.20 m to 10,668 m (–50 ft to 35,000 ft)
	Airborne contaminant level	G1 or lower as defined by ANSI/ISA-S71.04-1985
