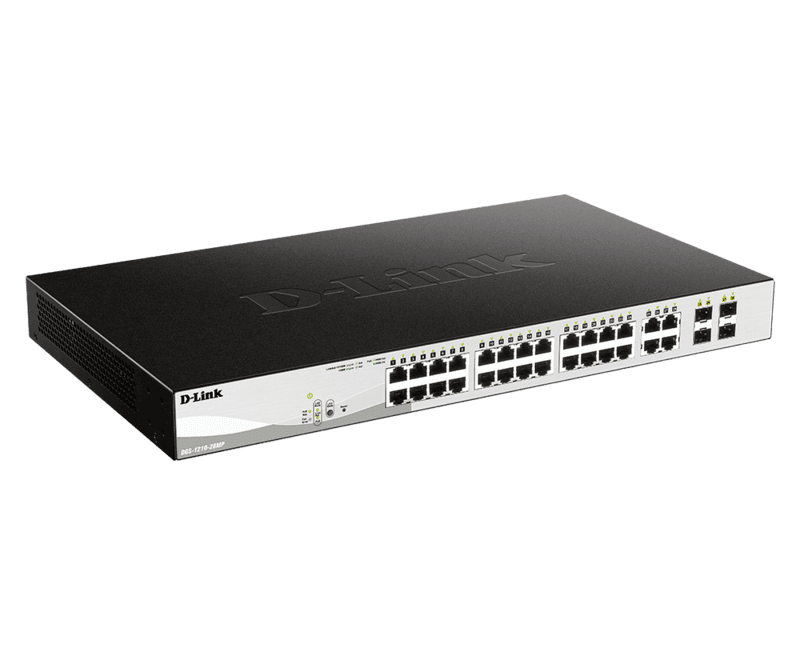

DGS-1210-28 Smart Managed Switches

DGS-1210-10

DGS-1210-20

DGS-1210-28

DGS-1210-52

General

Number of Ports

• 8 10/100/1000 Mbps

• 2 SFP

• 16 10/100/1000 Mbps

• 4 SFP

• 24 10/100/1000 Mbps

• 4 SFP

• 48 10/100/1000 Mbps

• 4 SFP

Port Standard & Functions

• IEEE 802.3 10BASE-T Ethernet

• IEEE 802.3u 100BASE-TX (Fast Ethernet)

• IEEE 802.3ab 1000BASE-T (Gigabit Ethernet)

• IEEE 802.3x Flow Control for Full-Duplex Mode

• Auto-negotiation

Network Cables

• UTP Cat. 5, Cat. 5e (100 m max.)

• EIA/TIA-568 100-ohm STP (100 m max.)

Full/Half Duplex

• Full/half duplex for 10/100 Mbps speeds

• Full duplex for Gigabit speed

Media Interface Exchange

Auto or configurable MDI/MDIX

Performance

Switching Capacity

20 Gbps

40 Gbps

56 Gbps

104 Gbps

Transmission Method

Store-and-forward

MAC Address Table

16,000 entries per device

MAC Address Update

• Up to 256 static MAC entries

• Enable/disable auto-learning of MAC addresses

Maximum 64 bytes packet forwarding rate

14.88 Mpps

29.8 Mpps

41.7 Mpps

77.4 Mpps

Packet Buffer Memory

1.5 MB

1.5 MB

1.5 MB

3.0 MB

Physical & Environmental

AC Input

100 to 240 VAC 50/60 Hz internal universal power supply

Maximum Power Consumption

13.59 W

16.09 W

22.45 W

38.27 W

Standy Power Consumption

9.3 W/110 V, 9.4 W/240 V

8.59 W/110 V, 8.80 W/240 V

17.65 W/110 V, 17.84 W/240 V

29.44 W/110 V, 29.49 W/240 V

Fan Quantity

0

0

0

Two smart fans

Acoustics

0 dB(A)

0 dB(A)

0 dB(A)

Low speed: 39.8 dB(A) High speed: 49.2 dB(A)

Heat Dissipation

46.37 BTU/hr

54.91 BTU/hr

76.55 BTU/hr

130.58 BTU/hr

Operating Temperature

23 to 122 ˚F (-5 to 50 ˚C)

Storage Temperature

-4 to 158 ˚F (-20 to 70˚C)

Operating Humidity

0% to 95% non-condensing

Storage Humidity

0% to 95% non-condensing

Dimensions (W x D x H)

11.02 x 4.96 x 1.73 inches (280 x 126 x 44 mm) •
19” standard rack mounting width, 1U height

11.02 x 7.09 x 1.73 inches (280 x 180 x 44 mm)
19” standard rack mounting width, 1U height

17.32 x 5.51 x 1.73 inches (440 x 140 x 44 mm)
19” standard rack mounting width, 1U height

17.32 x 8.27 x 1.73 inches (440 x 210 x 44 mm)
19” standard rack mounting width, 1U height

Weight

3.39 lbs (1.54 kg)

2.82 lbs (1.28 kg)

3.68 lbs (1.67 kg)

5.69 lbs (2.58 kg)

Diagnostic LEDs

• Power (per device)

• Link/Activity/Speed (per 10/100/1000 Mbps port)

• Link/Activity/Speed (per SFP port)

• Power (per device)

• Link/Activity/Speed (per 10/100/1000 Mbps port)

• Link/Activity/Speed (per SFP port)

• Fan (per device)

MTBF

360,844 hours

317,412 hours

540,000 hours

481,624 hours

Certifications

• FCC Class A

• CE Class A

• ICES-003

• VCCI Class A

• C-Tick

• BSMI

Safety

• cUL

• CE LVD

Software Features

L2 Features

• MAC Address Table

  • 16,000 entries

• Flow Control

  • 802.3x Flow Control

  • HOL Blocking Prevention

• IGMP Snooping

  • IGMP v1/v2 Snooping

  • Supports 256 IGMP groups

  • Supports at least 64 static multicast addresses

  • IGMP per VLAN

  • Supports IGMP Snooping Querier

• Loopback Detection

• Spanning Tree Protocol

  • 802.1D STP

  • 802.1w RSTP

• 802.3ad Link Aggregetion

  • DGS-1210 28/28P: Maximum of 14 groups/8 ports per group

  • DGS-1210 52/52MP: Maximum of 26 groups/8 ports per group

  • DGS-1210 -10/10P: Maximum of 5 groups/8 ports per group

• LLDP

• LLDP-MED

• Jumbo Frame

  • Up to 9,216 bytes

• Spanning Tree Protocol

  • 802.1D STP

  • 802.1w RSTP

• Flow Control

  • 802.3x Flow Control

  • HOL Blocking Prevention

• Port Mirroring

  • One-to-One

  • Many-to-One

  • Supports Mirroring for Tx/Rx/Both

• Multicast Filtering

  • Forwards all unregistered groups

  • Filters all unregistered groups

• Configurable MDI/MDIX

  • MLD snooping v1/v2 (256 groups)

VLAN

• 802.1Q

• VLAN Group

  • Max 256 static VLAN groups

  • Max 4094 VIDs

• Management VLAN

• Asymmetric VLAN

• Auto Voice VLAN

  • Max. 10 user defined OUI

  • Max. 8 default OUI

• Auto Surveillance VLAN

QoS (Quality of Service)

• 802.1p Quality of Service

• 8 Queues per port

• Queue Handling

  • Strict

  • Weighted Round Robin (WRR)

• Bandwidth Control

  • Port-based (Ingress/Egress, min. granularity 64 Kb/s)

• QoS based on:

  • 802.1p Priority Queues

  • DSCP

  • ToS

  • IPv6 Traffic Class

  • TCP/UDP port

L3 Features

• IP Interface

  • Supports 1 interface

• IPv6 Neighbor Discovery (ND)

Access Control List

• Max. 50 access list

• Max. 768 rules shared by IPv4, MAC and IPv6

• Each rule can only be associated with a single port

• ACL based on

  • 802.1p priority

  • VLAN

  • MAC address

  • Ether type

  • IP address

  • DSCP

  • Protocol type

  • TCP/UDP port number

  • IPv6 Traffic Class

Security

• Broadcast/Multicast/Unicast Storm Control

• D-Link Safeguard Engine

• DHCP Server Screening

• IP-MAC-Port Binding (Smart Binding)

  • Supports 512 address binding entries

  • ARP Inspection

  • ARP + IP Inspection

  • Supports DHCP Snooping

• 802.1X Port-based Access Control

• ARP Spoofing Prevention

  • Max. 64 entries

• Traffic Segmentation

• SSH v2

• SSL

  • Supports v1/v2/v3

• Port Security

  • Supports up to 64 MAC addresses per port

• Duplicate address detection

AAA

• 802.1X Authentication

  • Supports local/RADIUS database

  • Supports port-based access control

  • Supports EAP, OTP, TLS, TTLS, PEAP

  • IPv6 RADIUS Server

  • Support MD5 authentication

OAM

• Cable Diagnostics

• Factory Reset

MIB/RFC Standards

• RFC 783 TFTP

• RFC 951 BootP/DHCP Client

• RFC 1157 SNMP v1, v2, v3

• RFC 1213 MIB II

• RFC 1215 MIB Traps Convention

• RFC 1350 TFTP

• RFC 1493 Bridge MIB

• RFC 1769 SNTP

• RFC 1542 BootP/DHCP Client

• RFC 1901 SNMP v1, v2, v3

• RFC 1907 SNMP v2 MIB

• RFC 1908 SNMP v1, v2, v3

• RFC 2131 BootP/DHCP Client

• RFC 2138 RADIUS Authentication

• RFC 2139 RADIUS Authentication

• RFC 2233 Interface Group MIB

• RFC-2246 SSL

• RFC 2475

• RFC 2570 SNMP v1, v2, v3

• RFC 2575 SNMP v1, v2, v3

• RFC 2598 CoS

• RFC 2618 RADIUS Authentication

• RFC 2819 RMON v1

• RFC 2865 RADIUS Authentication

• RFC 3164 System Log

• RFC 3195 System Log

• RFC 3411-17 SNMP

• D-Link Private MIB

• LLDP MIB

• Zone Defense MIB

• 2233 Interface Group MIB

Management

• Web-based GUI

• D-Link Network Assistant Utility

• Compact CLI

• Telnet Server

• TFTP Client

• Configurable MDI/MDIX

• SNMP

  • Supports v1/v2c/v3

• SNMP Trap

• Backup/Upgrade firmware

• Smart Wizard

• Upload/Download Configuration file

• System Log

  • Max. 500 log entries

• BootP/DHCP Client

• SNTP

• ICMP v6

• IPv4/v6 Dual Stack

• DHCP Auto Configuration

• Time Setting

  • SNTP

• RMONv1

• Trusted Host

D-Link Green 3.0 Technology

• Power Saving by:

  • Link Status

  • Time-based PoE: PoE ports can be turned on/off by port or system through schedule

  • LED Shutoff

  • System Hibernation

  • Port Shutoff
