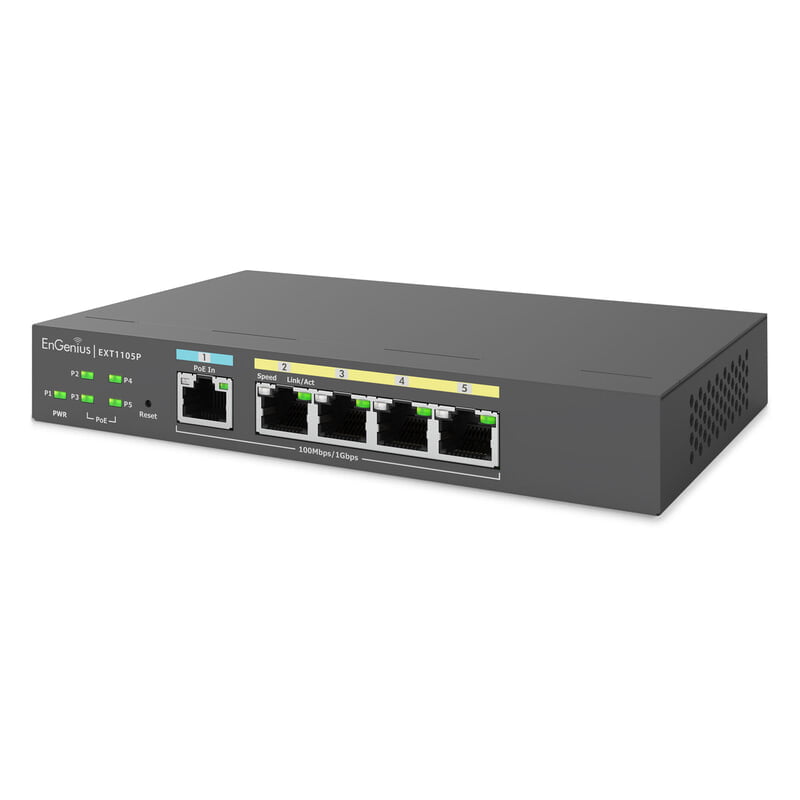

EXT1105P Cloud Managed 5-Port Gigabit PoE+ Switch Extender
Customize
Share :
Technical Specifications
Port Standards
802.3 10Base-T Ethernet
802.3u 100Base-TX Ethernet
802.3ab 1000Base-T Ethernet
802.3x Full-Duplex Flow Control
Network Ports
4 10/100/1000 Mbps Ports
1 10/100/1000 Mbps PoE Input Port for Power
PoE Capable Ports
Ports 2- 5 (802.3 af/at)
Total PoE Budget
Power Input: 802.3at Type 2(30W); Power Budget: up to 15W
Power Input: 802.3bt Type 3(60W); Power Budget: up to 40W
Power Input: 802.3bt Type 4(90W); Power Budget: up to 60W
Power Source
PoE PD
Recommend EnGenius PoE adapters (EPA5060GBT, EPA5090GBT)
Switching Capacity
10Gbps
Flash Memory
32MB
Power Source
Standard 802.3 PoE Input
Physical Interface
LED Indicators
Power LED (P1, P2, P3, P4 and P5)
Ports
Link/Activity (per Ethernet port)
Speed (per Ethernet port)
MAC Address Table
8K
Jumbo Frame
10K
Multicast Group
Max 8 groups
QoS Number of Priority Queues
8
QoS Trust Mode
CoS/802.1p
CoS/802.1p-DSCP
DSCP
Features
802.1w Rapid Spanning Tree
Multicast Filtering
IGMPv2
IGMP Snooping
IGMP Snooping Fast Leave
Port Statistics
802.1Q VLAN tagging
Voice VLAN
Port-based VLAN
Jumbo Frame
IPv4 Settings
Link Layer Discovery Protocol (LLDP)
Weighted Round Robin Queue (WRR)
Simple Network Time Protocol (SNTP)
SYSLOG
Factory Default
Reboot
Find me
Environmental & Physical
Temperature Range
Operating: 32~122°F (0~50°C)
Humidity (Non-Condensing)
Operating: 5% - 95%
Package Contents
1 x Cloud Managed 5 Ports Gigabit Switch Extender
1 x Product Card
1 x Wall mount kit
1 x Adhesive label
1 x Rubber Feet Cushion
Dimensions & Weights
Dimensions & Weights
EXT1105P Device
Weight: 1.01 lbs. (460 g)
Length: 6.69” (170 mm)
Width: 4.13” (105 mm)
Height: 1.02” (26 mm)
Packaging
Weight: 1.14 lbs. (520 g)
Length: 8.89” (226 mm)
Width: 4.41” (112 mm)
Height: 1.41” (36 mm)
Warranty
5 years
Certifications
CE
FCC
IC
