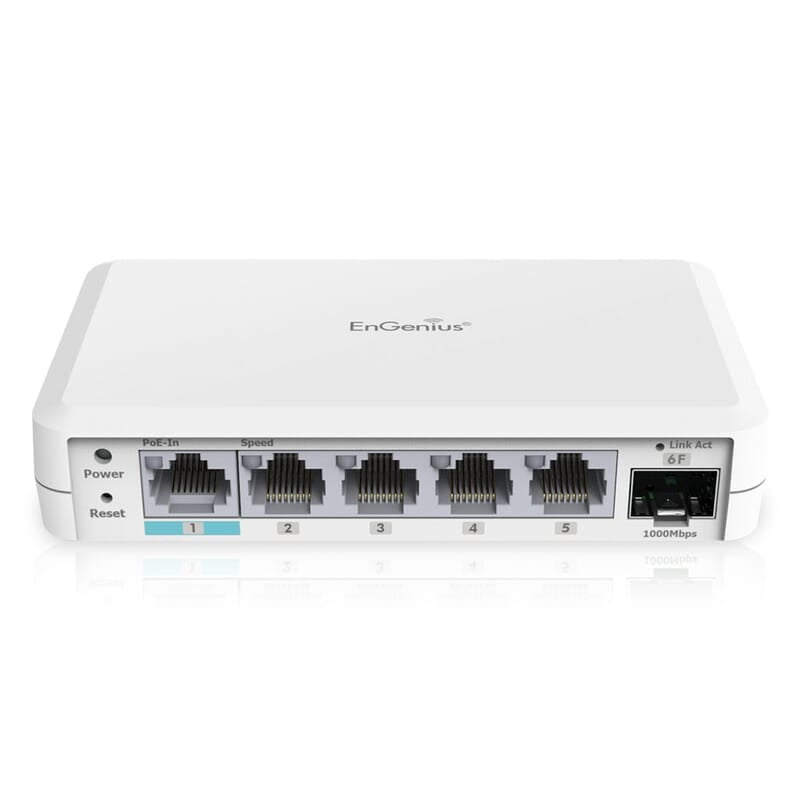

EXT1106 Cloud Managed 5-Port Gigabit Switch Extender and 1 SFP slot
Customize
Share :
echnical Specifications
Port Standards
802.3u 100Base-TX Ethernet
802.3ab 1000Base-T Ethernet
Network Ports
5 10/100/1000 Mbps Ports
1 10/100/1000 Mbps SFP Port
Power Source
PoE PD
Recommend EnGenius PoE adapters (EPA5006GP, EPA5006GAT)
Type-C (100 to 240 VAC, 50/60Hz)
Switching Capacity
12 Gbps
Flash Memory
32MB
LED Indicators
Port LED
Ports
Link/Activity/Speed (per Ethernet port)
Link/Activity (per SFP Slot)
MAC Address Table
8K
Jumbo Frame
10K
Multicast Group
Max 8 groups
QoS Number of Priority Queues
8
QoS Trust Mode
CoS/802.1p
CoS/802.1p-DSCP
DSCP
Features
802.1w Rapid Spanning Tree
Domain Name System (DNS) settings
Multicast Filtering
IGMPv2
IGMP Snooping
IGMP Snooping Fast Leave
Port Statistics
802.1Q VLAN
Voice VLAN
Port-based VLAN
Jumbo Frame
IPv4 Settings
Link Layer Discovery Protocol (LLDP)
Weighted Round Robin Queue (WRR)
Simple Network Time Protocol (SNTP)
SYSLOG
Factory Default
Reboot Switch
Find Me
Environmental & Physical
Temperature Range
Operating: 32°F to 104°F (0°C to 40°C)
Humidity (Non-Condensing)
Operating: 5% - 95%
Package Contents
1 x 5 Ports Gigabit Switch Extender
1 x Product Card
1 x Wall mount kit
1 x Power Adapter
Dimensions & Weights
EXT1106 Device
Weight: 0.27lbs. (124 g)
Length: 4.92” (125 mm)
Width: 2.09” (73.9 mm)
Height: 1.10” (28 mm)
EXT1106 Packaging
Weight: 0.52 lbs. (240 g)
Length: 3.26” (83 mm)
Width: 2.91” (74 mm)
Height: 5.39” (137 mm)
Warranty
5 years
Certifications
CE
FCC
LVD
