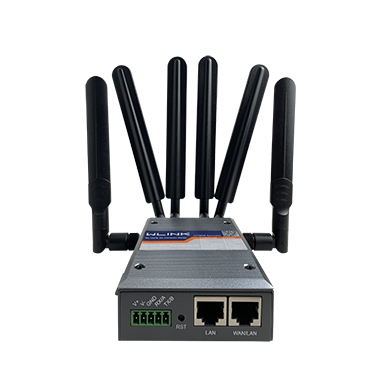

G230 Compact 5G Router

• 5G

n1/2/3/5/7/8/12/13/14/18/20/25/26/28/29/30/38/40/41/48/66/71/75/76/77/78/79

• 4G

  FDD-LTE B1/B2/B3/B4/B5/B7/B8/B9/B12/

B13/B14/B17/B18/B19/B20/B25/B26/B28/B29

/B30/B32/B66/B71

TDD-LTE B34/B38/39/B40/B41/B42/B48

• 3G

  HSPA/UMTS B1/B2/B3/B4/B5/B6/B8/B19


• MIPS Dual-core 880MHz

• 256Mb Flash, 4Gb DDR3 RAM

• Hardware Watchdog

• 2x Gigabit Ethernet (1x LAN, 1X LAN/1x WAN Configurable)

• 1x SIM Slot

• 5Pins Terminal block connector

• 1x RS232/RS485

• 1x DC(2Pins plugs)

• 1x SIM Tracy

• 4x SMA-K(Female) 5G Antenna Interface

• 2x SMA-RP Wi-Fi Interface


• GPS Sensitivity: -160dBm

• GPS Accuracy: 2.5m CEP

• Update Rate: 1Hz@5Hz

• Time to First Fix: Cold Status 27s, Hot status 1s

• Protocol: NMEA-0183 2.3V

• Cellular

• LAN

• WAN

• WLAN

• IEEE 802.11 n/ac

• Voltage: DC +7.5~32V (standard 12V/2A power   adapter)

• SIM/R-UIM Card: 3V

• Idle: 600mA@+12VDC

• Online : 850mA@+12VDC

• Galvanized metal with grounding Screw

• Dimension: 103mm x 73.5mm x 28mm (not including antenna)

• Weight: 320g (not including accessories)

• Operation temperature: -30 ~ +75℃

• Storage temperature: -40~+85℃

• Relative humidity: 0~95% (non-condensing)

• Guarantee: one year


• FCC

• CE

• RoHS

• CCC

• 1x WL-G230 Router

• 2x Wi-Fi antennas

• 4x 5G Magnetic antennas

• 1x Ethernet Cable

• 1x Power Supply Adapter

• WLINK OS based on Linux

• IP Filter

• Mac Filter

• Domain name Filter

• IPv4, IPv6 (Optional)

• PPPoE

• UDP/TCP/ICMP/NTP/DHCP,

• HTTP/HTTPS

• UPNP

• SNMP

• TR069

• ICMP Check

• Traffic Check

• Traceroute

• Data Capture

• Bandwidth Graph

• Data Traffic Graph

• Wireguard

• Zerotier

• GRE Tunnel

• OpenVPN Client/Server

• PPTP/L2TP Client/Server

• L2TP V3

• IPsec Client/Server

• DMVPN

• 5G/WAN Failover

• VLAN

• Bandwidth Management

• NAT/DMZ

• IP Passthrough / Port Redirection

• Static/Dynamic routing

• Local/Remote GUI

• Telnet/SSH

• WLINK M2M Platform

• Access Point

• AP + WDS

• Wireless Client

• Wireless Ethernet Bridge

• WDS

• 2.4G

• 5G

• 2.4G&5G

• WEP

• WPA Personal/Enterprise

• WPA2 Personal/Enterprise

• WPA/WPA2 Personal/Etnerprise

• Radius
