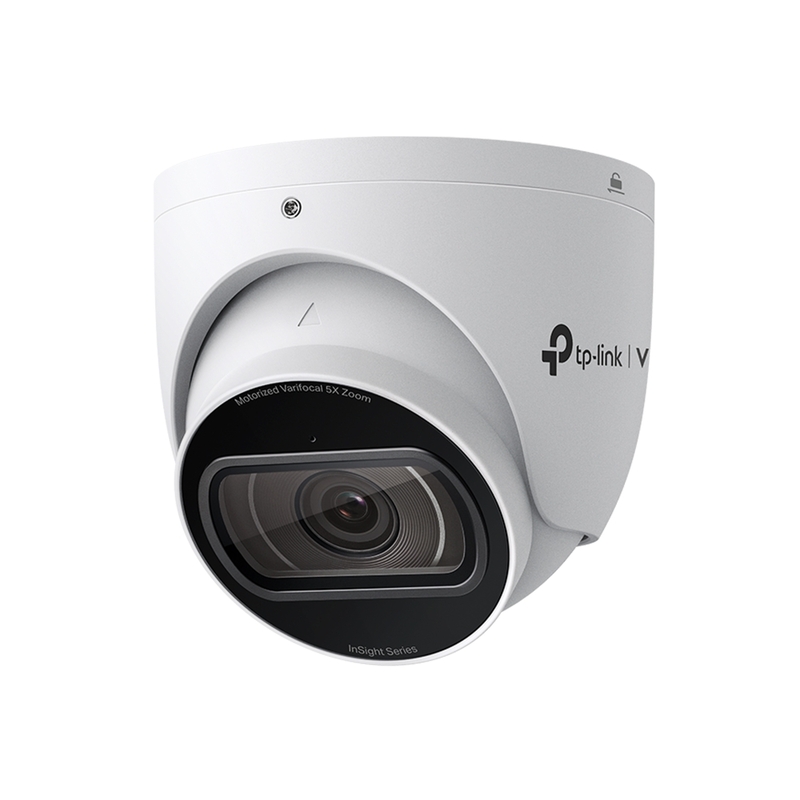

InSight S445ZI VIGI 4MP IR Motorized Varifocal Turret Network Camera

1/2.9” Progressive Scan CMOS

1/3 to 1/10000 s

Yes

0.005 Lux; 0 Lux with IR Light

IR Cut Filter

Unified/ Scheduled/ Auto

Motorized Varifocal Lens

2.7-13.5 mm (5X Optical Zoom)

F1.6

2.7-13.5 mm:
• Horizontal FOV: 29.6°-102.0°
• Vertical FOV: 16.8°-53.8°
• Diagonal FOV: 34.1°-122.8°

Φ14

2.7-13.5 mm:
• Detect: 66-207 m (217-579 ft)
• Observe: 28-86 m (92-282 ft)
• Recognize: 13-41 m (43-135 ft)
• Identify: 7-21 m (23-69 ft)

Pan: 0° to 360°, Tilt: 0° to 77°, Rotation: 0° to 360°

• Quantity: 4
• Range: 60m (197ft)
• Wavelength: 850nm

Auto/Scheduled/Always on/Always off

2688 x 1520

• Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

• Resolution:
2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080

Note:
• If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

• Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

• Resolution:
1280x720, 848x480, 704x576, 640x480, 640x360, 352x288, 320x240

• Note:
If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

CBR, VBR

• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264

High Profile

Main Stream Supported

Main Profile

Main Stream Supported

• Main Stream: 256 Kbps to 6 Mbps
• Sub-Stream: 512 Kbps to 1024 Kbps

• Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure
• WDR
• White Balance
• Prevent Overexposure to Infrared Light
• HLC Adjustable by Client Software

BLC/3D DNR/HLC/SmartIR

120 dB

≥ 52 dB

Yes

Up to 4 Masks

1 Region

Yes

One-Way Audio

Yes

Yes

Yes

8KHz

Yes

64 Kbps(G.711 alaw)

TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP

Yes

Open Network Video Interface (Profile S/T/G)

3 Main Streams & 3 Sub-Streams

VIGI App, VIGI Security Manager, Web UI, VIGI VMS, VIGI Cloud VMS

• Google Chrome® 57 and above
• Firefox® 52 and above
• Safari® 11 and above
• Microsoft® Edge 91 and above

Yes

Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

• Intrusion Detection
• Line-Crossing Detection
• Region Entering Detection
• Region Exiting Detection
• Object Abandoned Detection
• Object Removal Detection
• Loitering Detection
• People Detection
• Vehicle Detection
• Abnormal Sound Detection
• Scene Change Detection

• Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts)
• Video Tampering Detection
• Exception ( Illegal Login)

• Memory Card Video Recording
• Message Push
• Audible Warning
• Email Alarm
• Upload Capture to FTP
• Alarm Out Device

N/A

• Message Push
• Email Alarm
• Upload Capture to FTP

1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE

1 Alarm In, 1 Alarm Out

Yes

DC Power Port

Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB*

Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera

N/A

1 Audio In, 1 Audio Out

-30–60 °C

-40–60 °C

95% or Less (Non-Condensing)

95% or Less (Non-Condensing)

• VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Attachments
• Mounting Accessories

Metal

0.71 Kg

0.96 Kg

• 12V DC ± 5%, Max.10.8 W, 5.5 mm Coaxial Power Plug
• PoE: 802.3af/at, class 0, Max.12 W

IP67 Weatherproof, IK10 Vandal Proof

Φ4.4 × 3.6 in (Φ112.3 × 92.5 mm)

CE, NTRA, VCCI, KC, BSMI, FCC, IP67, IK10, ONVIF
