ODU350 Outdoor 5G CPE

Specification

Optional Cellular Network

WLAN

• 5G N1/2/3/5/7/8/12/20/28/38/40/41/66/71/77/78/79

• FDD-LTE B1/B2/B3/B4/B5/B7/B8/B9/B12/B13/B14/B17/B18/B19/B20/B25/B26

  /B28/B29/B30/B32/B66/B71

• TDD-LTE B34/B38/39/B40/B41/B42/B48

• WCDMA B1/B2/B3/B4/B5/B6/B8/B19

• Standard: IEEE 802.11 b/g/n/ac

• Frequency:2.4G, 2.4G&5G Optional

• Security: WEP,  WPA and WPA2 encryption

• Mode: AP, Client, station, bridge mode support

Firewall &  Filter

VPN Tunnel

• IP Filtering, MAC Filtering, URL Filtering

• Built-in NAT Firewall

• DMZ

• Stateful Packet Inspection (SPI)

• Access Control

• Password  protection for system management

• VPN Passthrough

• PPTP/L2PT Client/Server

• GRE Tunnel

• IPSec Server/Client

• OpenVPN Server/Client

• Wireguard

• Zerotier

• L2TP V3

• DMVPN

Network Protocol

Management

• IPv4, IPv6(Optional)

• PPPoE

• UDP/TCP/ICMP/NTP/DHCP/Modbus TCP

• HTTP/HTTPS

• Static/RIP V1/2

• SNMP

• Web-Based GUI for Local or remote management

• CLI/Telnet command

• Support SNMP

• Wlink Cloud management platform (optional)

• SSH configure  (optional)

 Mechanical

Physical Interface

Antenna

• 4x Cellular Antenna N male connector

• 2x Wi-Fi Antenna N male connector

• 1x Ethernet Port

• 1x SIM Card Slot

• 5G Antenna: N type, Gain: 5dBi / V.S.W.R.: ≤ 2.0

• WiFi Antenna:   N type, Gain: 5dBi / V.S.W.R.: ≤ 2.0

• Connector: N   Male

• Polarization:   Vertical

• Impedance:   50 Ω

• Max Input  power: 10Walt

Power Source

Other

• Support 12V to 36VDC Power Supply

• PoE Adapter: Input: 110~24oVAC 50/60Hz

• Output: 12Volt 1.5Amps

• Ethernet cable: Customized length

• Dimension: 216mm x 216mm x 69mm

  (not including   antenna)

• Weight: 2850g

• Color: White

• Operation temperature: -30 ~ +70℃

• Storage temperature: -40 ~ +85℃

• Relative humidity: <95% (non-condensing)

Package Kits

Optional Accessories

• 1x WL-ODU350 Outdoor 5G CPE

• 4x Cellular antenna

• 2x Wi-Fi antenna

• 1x One meter Ethernet Cable

• 1x PoE Adapter

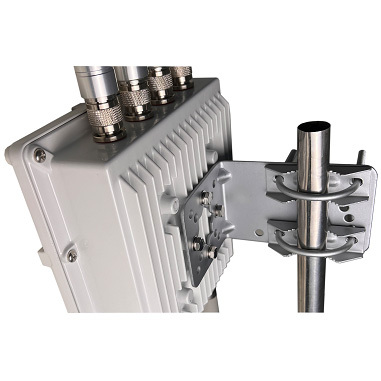

• 1x Pole Mounting Kits

• Higher Gain Directional 5G Antenna

• Higher Gain Wi-Fi antenna

• Customization Length Ethernet cable
