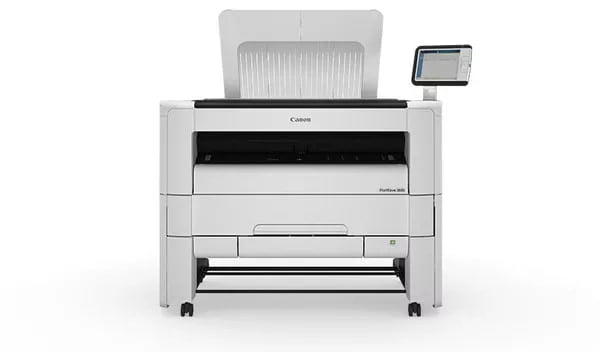

PlotWave 3000 series
Rs.1,213,224.50 Rs.1,420,847.46
Customize
Share :
Product Details
| STANDARD SYSTEM CONFIGURATION 1 Roll printing system (standard) | Productive large format monochrome printer with ClearConnect multi-touch user panel. | Media sizes cut sheet Media weight | Short edge feed (portrait): A3, B4, A, B, A+, B+, Carto B4, 230 x 310 mm, 310 x 440 mm. Long edge feed (landscape): A3, A2, B4, B3, B, C, B+, C+, Carto B4, Carto B3, 15x21 in, 310 x 440 mm, 440 x 594 mm 60 - 110 g/m2; 16 - 29 lb; film: 3.5 - 4.0 mm |
| Stacking systems (standard) | Integrated Top Delivery Tray, up to 100 sheets capacity. | Roll length | Up to 200 m |
| Rotatable ClearConnect multi-touch user interface | Consistent look and feel from every angle of your workflow, standard including Smart Inbox, SmartAccess and Live Preview. | Roll width Minimum printed length | 297 - 914 mm; 11 - 36 inch 420 mm; 16,5 inch |
| Roll media switching | Fully automated roll media switch, to guide the media to the top delivery tray or back output depending on the user application. | Maximum printed length Roll media type | 200 m Plain paper, Transparencies, Translucent, Recycled paper, |
| ClearConnect workflow | Drivers: Driver Select for Microsoft® Windows®, Driver | Engineering Bond, Engineering Vellum, Coloured paper, Top Label Paper FSC, Red Label Paper PEFC, Black Label | |
| software Starter kit included | Express PostScript 3 driver. Publishers: Publisher Mobile for IOS and Android® Publisher Express, Publisher Select 3 for Microsoft Windows. 1 bottle toner 400 g, 1 bottle developer 1750 g, 1 roll 36 inch standard media 75 g/m2. | Paper PEFc, Green Label FSC, RecycledWhiteZero FSC, Transparent Paper, Transparent Paper FSC, Polyester film, Polyester film antistatic, Contrast Film, Clear Polyester Film, Double Matte Polyester Film, White Opaque Polyester Film, Translucent Engineering Bond, Recycled Engineering Bond, Colour Top, Recycled paper, Plain Paper recycled, Transparent, and Orika LPEX rice paper | |
| Earthquake provision1 OPTIONAL SYSTEM | Secure the printer against moving or tilting during an earthquake. This provision enables the user to secure the printer to a sturdy connection of the building. | Cut sheet media type Automatic roll media handling | Plain paper, Recycled paper, and Coloured paper, films, and transparent media. - Automatic width detection - Automatic roll media selection for optimised productivity and media saving, based on drawing size, media type, roll |
| CONFIGURATIONS Office space saving scanning | Scanner Express with Image Logic technology , | width and finishing - Automatic roll switching when end of roll is reached | |
| system Standalone System scanner Stacking Systems | integrated scanner positioned on top of the printer to save office space. Scanner Professional, productive Stand alone 48 bit color scanner with 1200x1200 dpi CCD technology (9600x9600 dpi interpolated), 22 inch flatpanel touchscreen, powerful embedded Linux controller and 23 meter / scan min speed Stacker Select, up to 400 sheets capacity. Increase your delivery capacity up to 500 sheets | USER INTERFACE Description Size (WxDxH) Resolution Technology Operation | ClearConnect multi-touch user panel 300 x 220 x 40 mm; 11.8 x 8.7 x 1.6” (10.4” at 4x3 ratio) 800 x 600 pixels (SVGA) Projective capacitive touch 3 hard buttons: [Wake-up], [Stop, interrupt, abort], [Home] |
| Roll media capacity upgrade | Additional 2nd roll option to increase media capacity | Multi-touch functions: tab, double tap, pinch, 2 finger pinch, swipe, flick and spread. | |
| from 200 m to 400 m | Interface design | Distinctive user interface with intuitive navigation and | |
| Removable hard disk | For secure environments, hard disk can easily be removed from the printer system to secure data integrity | Features | clearly defined levels of operation. View optimisation: Tilt (-4 to +45 degrees) and turn (-45 to |
| TECHNOLOGY Imaging technology | Electrophotography (LED) with Organic | +180 degrees) Status light (red, orange, green) USB 2.0 interface with indication light. Switch instantly between 2 languages, select from 21 | |
| photoconductor (OPC) Radiant Fusing Technology with Instant warm-up Clean toner refill system Virtually no ozone emission | CONTROLLER Description | languages. High performance POWERsync controller with Windows 10 | |
| Fusing technology | Instant warm-up, contactless fusing, low power consumption (heating on demand) | Processor | iOT LTSC, 64 bits Dual Core, Dual Thread Celeron® G4900 @3.10Ghz |
| Toner / type | Black toner: 800 gram per toner kit | Memory | 4 GB DDR4 |
| PRODUCTIVITY | Video | Intel HD Graphics, 1GHz | |
| Speed (print and copy) | PlotWave 3000: 4 D/A1-sizes2 per minute 2 E/A0 sizes3 per minute PlotWave 3500: 6 D/A1-sizes2 per minute | Hard Disk TPM Client operating system | 500 GB, 7200 rpm (standard) TPM2.0 Windows 7 / Windows 7 64 bits / Windows 8.1 / Windows |
| First print out time4 First copy out time5 | 3 E/A0 sizes3 per minute <40 seconds <40 seconds | support | 8.1 64 bits / Windows 10 / Windows 10 64 bits / Windows Server 2008 R2 64 bits / Windows Server 2012 64 bits / Windows Server 2012 R2 64 bits Mac OS 10.10 / Mac OS 10.11 / Mac OS 10.12 (PostScript 3 driver support only for Mac OS ) |
| QUALITY Print Resolution Minimum line width (ISO/IEC | 600 x 1200 dpi 0.06 mm; 0.00236 in | Interface Page description language | 2x Ethernet 100 Mbits/s, 1 Gbit/s TCP/IP: DHCP, IPv4, IPv6, HTTPS Discovery: APIPA, WS-Discovery, SNMP v3 TIFF, JPEG, HPGL, HPGL2, DWF, C4, Calcomp 906/907/951, CALS, NIRS, NIFF, PS/PDF (optional) |
| 13660:2001E) 1:1 Line accuracy | < 0.3% | Printing protocol | LPR, FTP, WebDav, WSD print - FTP |
| SIZE AND WEIGHT Size main engine (WxDxH) | Compact design: 1563 x 803 x 1503 mm; (including Top | - Pull from SMB, FTP - Pull from cloud (retrieve from ARC Collaborate, WebDAV based clouds) - HTTP/HTTPS (used by Publisher Express) | |
| Shipping dimensions (WxDxH) | Delivery Tray) 1470 x 850 x 1280 mm | Back channel protocol | - Print from home folder (via optional access management license) SNMP v3, Wave interface, WS-Discovery. |
| Weight main engine | 220 kg | SECURITY | |
| Shipping weight main engine MEDIA HANDLING Media capacity Paper cutting | 271 kg 1 or 2 rolls; manual feed of cut sheet media; Cutter included in the drawer for fast and easy roll media | SMARTshield | E-shredding, IPSec, IP filtering/Access Control Lists, HTTPS, SNMP v3, audit logging, AES256 Disk Encryption, 802.1x Authentication, network protocol enable/disable, LDAP integration, Active Directory Integration, User authentication on local ClearConnect user panel and via Express WebTools (LDAP/Active Directory credentials, smart card) for scan/copy/print. Configure HTTPS Certificates. Allow disabling TLS1.0 and 1.1 protocols (no |
| Maximum media capacity Media sizes roll | switching 1 roll: 200 m1, 183 m2; 2 roll: 400 m1, 365 m2; A3, A2, A1, A0, B1, B2, B1_700, B2_700, B, C, D, E, B+, C+, | response to network scan) and enable TLS 1.2 with stronger cipher. Embedded FIPS 140-2 Certified Trusted Platform Module (TPM) and BitLocker 256 AES hard disk encryption, hard disk wipe, Configurable CA certificate, Disable Network Ports and Protocols, Security Event | |
| D+, E+, E1, 30”, 21”, 15”, 880 mm, 860 mm, 800 mm, 700 mm, 660 mm, 620 mm, 460 mm, 500 mm, 440 mm, 430 mm, 310 mm, 297 mm | Logging, Single Sign-on. Options: Removable hard disk, McAfee antivirus, McAfee Application control (whitelisting). | ||
| Access management Cloud support | Provide secure access to device by users by keying in password on the ClearConnect multi-touch operator panel or get access with a Smart Card by connecting a card reader (inclusing contactless). Authorisation is managed by using Active Directory Unlimited user and or Administrator authenticated cloud support via WebDAV and/or third party provider: e.g. Microsoft SharePoint, Dropbox, Box.com, box.net, Google Drive, Microsoft OneDrive, Amazon Cloud Drive, Cloudsafe, MyDisk, PlanWell Collaborate. The cloud user authentication can either be preconfigured by the administrator or done by the user at the time of accessing the specific cloud. | Queue management Print management & accounting | Spool memory provides a queuing system for print and copy jobs. This enables multiple users to send print and copy jobs at the same time. Customise priority settings for copy and print jobs in the queue. The Job Queue overview gives access to job names, owners and status including required media. Jobs can be paused, deleted, and placed on top of the queue. View the counter history at preferred time periods, per job or total overview in Express WebTools. View, create, edit and delete stamp templates. Optional uniFLOW support, login your personal uniFLOW Queue on the ClearConnect User interface. Supports manual authentication, card readers, and contactless card readers. |
| Transformations | Scaling (scale-to-fit page, reduce when image too large to avoid clipping or to custom factor, scale page size to standard size), Rotation, Shift (automatic or user defined), Adding/removing trailing/leading edge, Mirror, Black intensity in poster mode, Print optimisation (standard, lines/text, poster). Colour Highlight and Dark Original. Area to erase (area of interest). | Device management | Express WebTools provide administrators the tools to manage the device remotely via the web: e.g. check printer status, define default settings for print, copy and scan, define access, security, accounting, remote shutdown, software update and restart, power on/off timer, system behaviour, queue management, license management, view, create, edit and delete stamp templates etc. |
| SCANNER EXPRESS (optional) Description | Integrated Contact Image Sensor (CIS) Colour scanner | Scan to colour inkjet | Scan directly to iPF 600/700/800/TX- 2000/3000/4000/5200/5300/5400 series via Publisher Select 3 (hotfolder) |
| with Image Logic technology | |||
| Scan resolution Scan speed | 600 x 600 dpi 15.2 m/min Black & white scanning | PERIPHERALS | |
| 10.1 m/min Copying 5.0 m/min Colour scanning | SCANNER PROFESSIONAL (optional) | ||
| Scan formats | TIFF, PDF, PDF/A, JPEG, CALS, multi-page PDF, multi-page PDF/A and multi-page TIFF | Description | Charge-coupled device (CCD) colour 44” scanner with optional upgrade to 48” |
| Scan templates | Extensive number of scan templates to standardise common scan settings and destinations | Scan resolution Scan speed | 1200 x 1200 dpi (9600 x 9600 dpi interpolated) 23 m/min (200 dpi) |
| Scan protocol | FTP, SMB, scan to cloud (push to WebDAV based clouds) | 6 m/min (600 dpi) | |
| Scan destination Scan naming | Local USB flash drive, FTP, SMB, Smart Inbox on Controller, Optional Local Home folder (LDAP), mobile device via Mobile WebTools, WebDAV Clouds, PlanWell Collaborate. Preset naming with auto numbering for productive scanning or file name on the ClearConnect user panel. | Scan formats Scan templates Original width | Multipage PDF (PDF/A) and TIFF, JPEG, JPEG 2000, PNM, PNG, BMP, TIFF (Raw, G3, G4, LZW, JPEG) AutoCAD DWF, JBIG, DjVu, DICOM, PCX, Postscript, EPS, Raw data unlimited 1270 mm; 50 inch |
| Original width | 208 mm - 914 mm; 8.2” - 36”, automatic width detection | Original length | Endless |
| Original length | 208 mm - 16000 mm; 8.2”- 630”, automatic length detection | Colour depth/ colour output | 48 bit colour, 16 bit greyscale / 24 bit colour, 8 bit greyscale, bitonal, enhanced halftone |
| Original thickness | Maximum 0.8 mm; 0.03” (non-rigid documents) | Scan width | 44 model: 1118 mm; 44” / 48 model: max. 1220 mm; 48” |
| Zoom (copy) | 1:1, Scale to media size, Scale to standard format, Custom: 10 - 1000% | Connections | 1 USB Port 3.0 Interface 1 GBit Fast Ethernet with TCP/IP based Interface |
| Original types presets Size scanner (WxDxH) Weight scanner ENVIRONMENTAL Acoustic sound power Ozone concentration | Blueprint, Coloured original, Dark original, Folded lines/ text, Lines/text standard, Lines/text draft, Photo, Map, Artwork 1097 x 308 x 140 mm; 43 x 12 x 5.5”. 25 kg; 55 lbs Standby and sleep: less than 26 dB Print mode: less than 52 dB < 0.001 mg/m3, < 0.000473 PPM (0.05% of permitted limit value) | Embedded controller Size scanner (WxDxH) Weight scanner STACKER SELECT Description Capacity | 64 bit Linux, Intel i3, quad core processor, 16 Gigabyte RAM, 320GB HDD for very long scans 228 x 1425 x 507 mm; 9 x 56.1 x 20” (H x W x D) 53 kg / 117 lbs Integrated productive stacker with high capacity and tray full sensor up to 400 pages |
| Heat emission | Ready: 66 W; Active: 1.5 kW | FOOTNOTES: | |
| Power requirements | 100 - 240 V; 50/60Hz | 1 | Excluding cable/chain and mounting material |
| Power consumption | Sleep mode: <2 W ready mode: 66 W Active mode: 1.5 kW | 2 3 | D size (34 x 22”) / A1 size (841 x 594 mm) E-size (36 x 48”) / A0 Size (841 x 1189 mm) |
| Safety/ EMC marks & environmental labels | CE, TUV GS, CETECOM, Energy Star 3.0, FEMP, Rohs, CCC, VCCI TüV GS, c-UL-US, CB, RCM, EPEAT, EAC, FCC Class A, VCCI Class A | 4 5 | 1 A1 landscape print made from the smart inbox, on 64 g media, back output, lines and text mode. 1 copy made with A1 original in landscape on 64 g media, |
| Recyclables | Printer: made of steel or highly recyclable plastics: up to 95% of the engine can either be up cycled or recycled. Remaining 5% are non toxic waste. Prints: very good deinkability when recycled. Toner: bottles made of highly recyclable HDPE (High Density Polyethylene) | back output, background compensation off, custom width 841 mm, custom length 594 mm. | |
| CLEARCONNECT WORKFLOW SOFTWARE | |||
| Job submission | The ClearConnect software suite consists of a variety of applications with the same user interface. Create, retrieve and/or send jobs from drivers (Driver select for Microsoft Windows, Driver Express for Adobe PostScript 3 for Microsoft Windows or Apple OS), external locations (SMB, FTP, LPR, WebDAV), Mobile devices via Express WebTools and Publisher Mobile, USB flash drive, Cloud services and optional Home folder(LDAP). Optional PlanWell Collaborate. 1-click printing from USB, 1-click printing from previous sent jobs via Print SmartAccess on ClearConnect user panel. The Smart Inbox on the ClearConnect user panel enables the job preview: swipe between your jobs for print selection and preview. Pan to view the image in detail (zoom). With the template-oriented Publisher Select 3 submitting multiple files in batches is supported. Print multiple times, and sort by page or set. Media saving automatically rotates print files to optimise media usage. | ||
| Smart inbox | Personalised Smart Inbox with history, Manage queue, Manage history, Express WebTools, Secured controller access |
