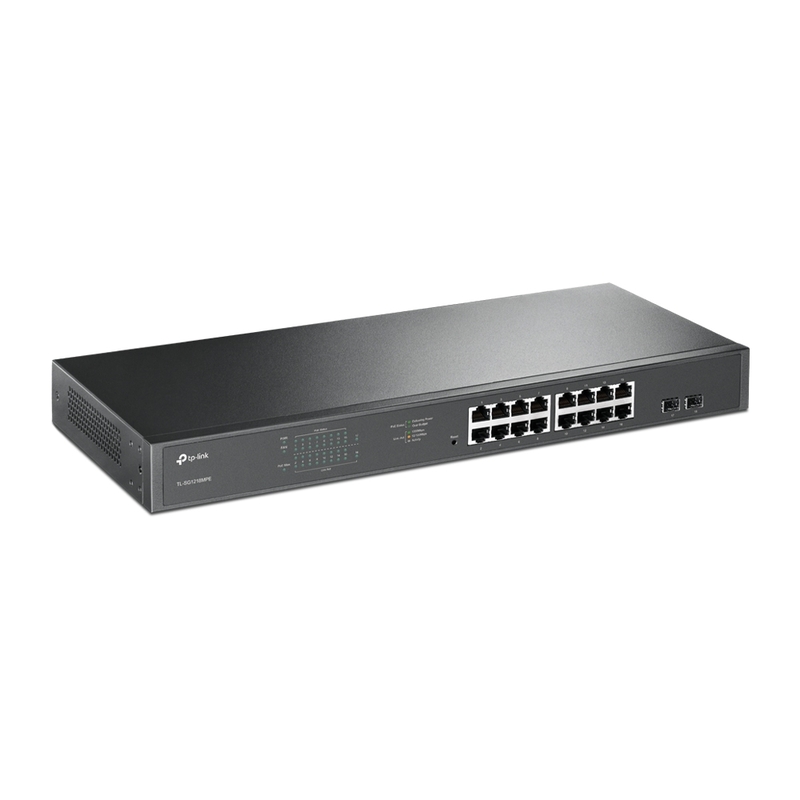

TP-Link TL-SG1218MPE 16-Port Gigabit PoE Switch
16-Port Gigabit Easy Smart PoE+ Switch with 2 SFP Slots
16 10/100/1000Mbps RJ45 PoE+ Ports Switch with 2 SFP Slots
PoE power budget is up to 192W, making it ideal for small to medium business surveillance systems
Port Priority is able to guarantee the quality of sensitive application like video monitor
Intelligent power management can protect the switch from overload
QoS is for smooth internet-surfing experience and IGMP Snooping is capable of optimizing traffic for IPTV.
Customize
Product Details
HARDWARE FEATURES |
|---|
Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p |
|---|
Interface | 16 10/100/1000 Mbps RJ45 Ports
(Auto Negotiation/Auto MDI/MDIX)
2 Gigabit SFP Ports |
|---|
Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-X MMF, SMF |
|---|
Fan Quantity | 2 Fans |
|---|
Physical Security Lock | Yes |
|---|
Power Supply | 100-240V AC, 50/60 Hz |
|---|
PoE+ Ports(RJ45) | Standard: 802.3at/802.3af compliant
PoE+ Ports: 16 Ports
Power Supply: 192W |
|---|
Dimensions ( W x D x H ) | 17.3 × 7.1 × 1.7 in. (440 × 180 × 44 mm) |
|---|
Mounting | Rack Mountable |
|---|
Max Power Consumption | 18.73 W (220/50Hz. no PD connected)
217.22 W (220/50Hz. with 192W PD connected) |
|---|
Max Heat Dissipation | 63.89 BTU/h (no PD connected)
741.15 BTU/h (with 192W PD connected) |
|---|
PERFORMANCE |
|---|
Switching Capacity | 36 Gbps |
|---|
Packet Forwarding Rate | 23.8 Mbps |
|---|
MAC Address Table | 8K |
|---|
Packet Buffer Memory | 4.1 Mbit |
|---|
Jumbo Frame | 9 KB |
|---|
SOFTWARE FEATURES |
|---|
Quality of Service | Support Port-based 802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control |
|---|
L2 Features | IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention |
|---|
VLAN | Support up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN |
|---|
Management | Web-based GUI
Easy Smart Configuration Utility |
|---|
Transmission Method | Store-And-Forward |
|---|
OTHERS |
|---|
Certification | CE, FCC, RoHS |
|---|
Package Contents | TL-SG1218MPE
Power Cord
Installation Guide
Resource CD
Rackmount Kit
Rubber Feet |
|---|
Environment | Operating Temperature: 0°C~50°C (32°F~122°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing |
|---|
