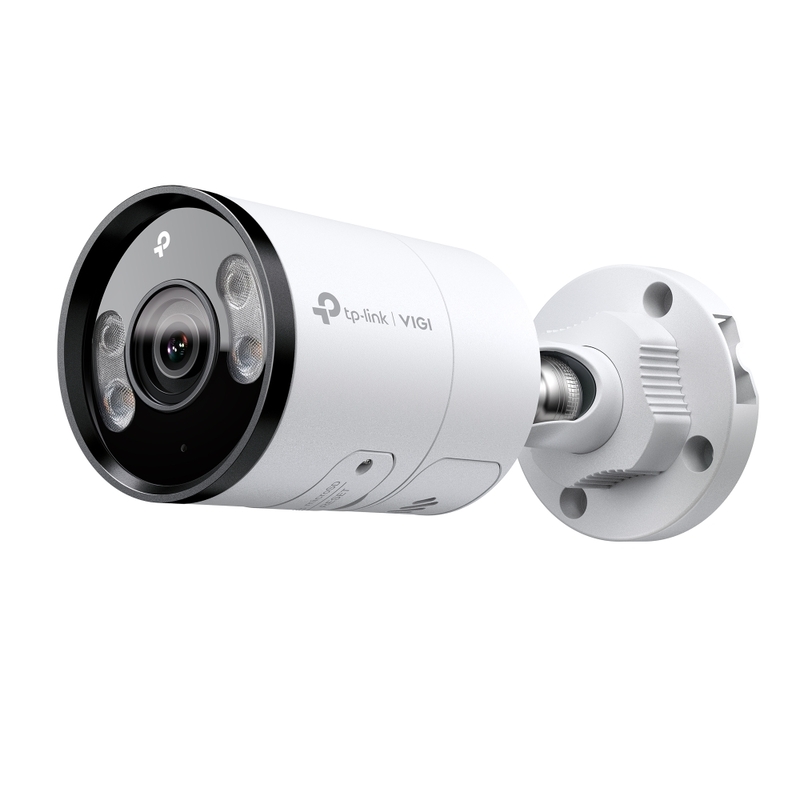

VIGI C385 8MP Outdoor Full-Color Bullet Network Camera

1/2.7” Progressive Scan CMOS

1/3 to 1/10000 s

Yes

0.005 Lux; 0 Lux with IR/White light

IR Cut Filter

Unified/ Scheduled/ Auto

Fixed Focal Lens

2.8/4 mm

F1.6

• 2.8 mm:
Horizontal FOV: 111.4°, Vertical FOV: 58.8°, Diagonal FOV: 134°

• 4 mm:
Horizontal FOV: 91.5°, Vertical FOV: 46.1°, Diagonal FOV: 109.6°

M12*P 0.5

• 2.8 mm
Detect: 85 m (278 ft)
Observe: 35 m (116 ft)
Recognize: 17 m (56 ft)
Identify: 8 m (28 ft)

• 4 mm
Detect: 107 m (350 ft)
Observe: 44 m (146 ft)
Recognize: 21 m (70 ft)
Identify: 11 m (35 ft)

Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°

• Quantity: 2
• Range: 30m
• Wavelength: 850nm

• Quantity: 2
• Range: 30m

Auto/Scheduled/Always on/Always off

3840 X 2160

• Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

• Resolution:
3840x2160, 2560x1440, 2304x1296, 2048x1280, 1920x1080,
1280x720

• Note:
If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
If 120dB is turned on, the frame rate can only support up to 20fps.

• Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

• Resolution:
704x576,640x480, 352x288, 320x240

• Note:
If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
If 120dB is turned on, the frame rate can only support up to 20fps.

CBR, VBR

• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264

High Profile

Main Stream Supported

Main Profile*

Main Stream Supported*

• Main Stream: 256 Kbps to 6 Mbps
• Sub-Stream: 64 Kbps to 512 Kbps

• Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure
• WDR
• White Balance
• Prevent Overexposure to Infrared Light
• HLC Adjustable by Client Software

BLC/3D DNR/HLC/SmartIR

120 dB

≥ 52 dB

Yes

Up to 4 Masks

1 Region

Yes

Two-Way Audio

Yes

Yes

Yes

8KHz

Yes

64 Kbps(G.711 alaw)

TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS

Yes

Open Network Video Interface (Profile S)

3 Main Streams & 3 Sub-Streams

VIGI App, VIGI Security Manager, Web UI, VIGI VMS

• Google Chrome® 57 and above
• Firefox® 52 and above
• Safari® 11 and above
• Microsoft® Edge 91 and above

Yes

Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

• Human & Vehicle Classification
• Intrusion Detection
• Line-Crossing Detection
• Region Entering Detection
• Region Exiting Detection
• Object Abandoned Detection
• Object Removal Detection
• Loitering Detection
• Smart Frame
• People Detection
• Vehicle Detection

• Motion Detection
• Video Tampering Detection
• Exception ( Illegal Login)
• Scene Change Detection

• Memory Card Video Recording
• Message Push
• Audible Warning
• White Light Flashing

N/A

Message Push

1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE

N/A

Yes

DC Power Port

Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB**

Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera

Yes

N/A

-30–60 °C

-40–60 °C

95% or Less (Non-Condensing)

95% or Less (Non-Condensing)

• VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Attachments
• Mounting Accessories

Metal

0.525 Kg

• 12V DC ± 5%, Max. 10.5 W, 5.5 mm Coaxial Power Plug
• PoE: 802.3af/at, class 0, Max. 11.5 W

IP67

74 × 184 × 74 mm

CE, NTRA, VCCI, KC, BSMI, FCC, IC
