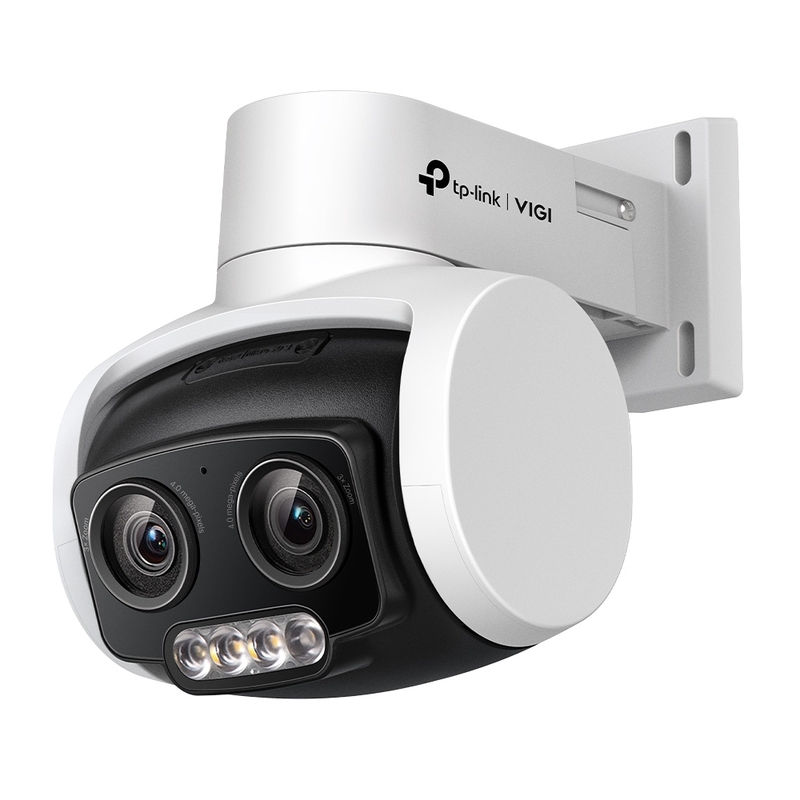

VIGI C540V 4MP Outdoor Full-Color Dual-Lens Varifocal Pan Tilt Network Camera

1/3” Progressive Scan CMOS

1/3 to 1/10000 s

Yes

0.005 Lux; 0 Lux with IR/white light

IR Cut Filter

Day/Night/Auto/Schedule-Switch

3x Mixed Zoom

4-12 mm (Mixed Zoom)

F1.6

Diagonal FOV: 100°, Horizontal FOV: 84°, Vertical FOV: 46°

M12*P 0.5

• 4 mm
Detect: 80 m (262 ft)
Observe: 33 m (109 ft)
Recognize: 16 m (52 ft)
Identify: 8 m (26 ft)

• 8 mm
Detect: 150 m (493 ft)
Observe: 63 m (205 ft)
Recognize: 30 m (98 ft)
Identify: 15 m (49 ft)

Pan: 0° to 332°, Tilt: 0° to 120°

Pan Speed:
Configurable from 1° to 55°/s; Preset Speed: 55°/s

Tilt Speed:
Configurable from 1° to 40°/s, Preset Speed 40°/s

Configurable from 8° to 35°/s

300

8 patrols, up to 8 presets for each patrol

Yes;
Auto restore to previous PTZ and lens status after power failure

Yes;
Preset; Patrol Scan

Yes

Pan: 0° to 332°, Tilt: 0° to 120°

Quantity: 1
Range: 30m
Wavelength: 850nm

Quantity: 3
Range: 30m

Auto/Scheduled/Always on/Always off

2560 X 1440

Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution:
2560x1440, 2304x1296, 2048x1280, 1920x1080,1280x720

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution:
640x480, 352x288, 320x240

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

CBR, VBR

Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264

Main Profile/High Profile

Main Stream Supported

Main Profile

Main Stream Supported

Main Stream: 256 Kbps to 4 Mbps
Sub-Stream: 64 Kbps to 512 Kbps

Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software

BLC/3D DNR/HLC/SmartIR

DWDR

≥ 52 dB

Yes

Up to 4 Masks

1 Region

Yes

Two-Way Audio

Yes

Yes

Yes

8KHz

Yes

64 Kbps(G.711 alaw)

TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS

Yes

Open Network Video Interface (Profile S)

3 Main Streams & 3 Sub-Streams

VIGI App, VIGI Security Manager, VIGI NVR, Web

Google Chrome® 57 and above
Firefox® 52 and above
Safari® 11 and above
Microsoft® Edge 91 and above

Yes

Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection

Motion Detection, Video Tampering Detection, Exception ( Illegal Login)

Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing

N/A

Message Push

1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE

N/A

Yes

DC Power Port

Built-In Memory Card Slot, Support MicroSD Card, up to 256 GB

Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera

Yes

N/A

-30–60 °C

-40–60 °C

95% or Less (Non-Condensing)

95% or Less (Non-Condensing)

VIGI Network Camera
Quick Start Guide
Waterproof Cable Attachments
Mounting Accessories

Plastic

0.43 Kg

0.66 Kg

12V DC ± 5%, 5.5mm Coaxial Power Plug
PoE (802.3at, class 4)

Maximum: 14 W
Typical (Day Mode): 2.9 W
Typical (Night Mode with IR LED): 5.7 W
Typical (Night Mode with White LED): 6.1 W

IP66

107*136*139 mm

CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC
