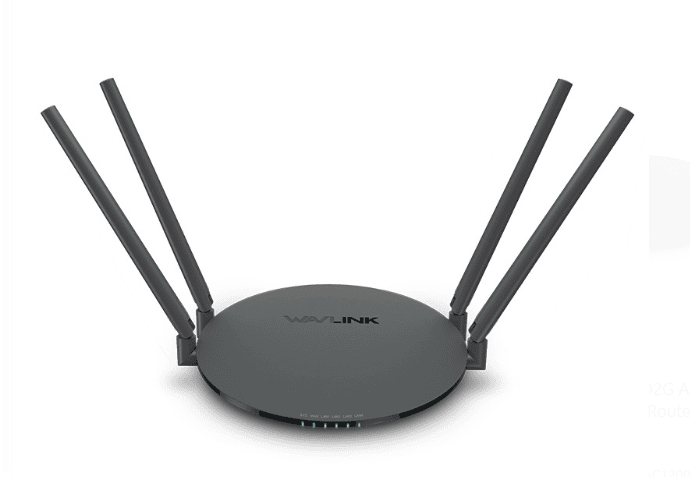

WN530G3 — AC1200 Dual Band WiFi Router QUANTUM D2G

WAVLINK QUANTUM D2G AC1200 Dual Band Full Gigabit WiFi Router adopts 802.11ac technology for faster speeds, greater capacity and reduced network congestion compared to the previous generation.
Achieves a total networking speed of about 1167Mbps —867 Mbps on the 5GHz band and 300 Mbps on the 2.4GHz band.

Rs.1,100.00

Customize

Product Details

WIRELESS
Wireless Standards
IEEE 802.11b/g/n/a/ac
Frequency
5GHz and 2.4GHz
Speed
802.11ac: up to 867Mbps
802.11n: up to 300Mbps
802.11a: up to 54Mbps
802.11g: 54Mbps
802.11b: 11Mbps
Encryption
WPA-PSK
WPA2-PSK
WPA/WPA2 Mix
Wireless Range
2 Bedroom Houses
4 × Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more
directions and large areas
Beamforming
Concentrates wireless signal strength towards clients to
expand WiFi range
High Wireless Capacity
Dual-Band
Allocate devices to different bands for optimal performance
DFS Access an extra band to reduce congestion
2x2 MIMO 2.4GHz/5GHz dual-band RF transceiver

SOFTWARE
Working Modes
Router / AP / Repeater
WAN Type
Dynamic IP
Static IP
PPPoE
Cable or DSL Modem (if needed)
Subscription with an internet service provider for
internet access.
DHCP
Address Reservation
DHCP Client List
Server
Protocols
IPV4
Guest Network
1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
Management
Local management
Webpage (Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser)
Network Security
SPI Firewall
IP & MAC Binding
DDoS Attack Prevention
Cloud Service
Auto Firmware Upgrade
OTA Firmware Upgrade
DDNS
NAT Forwarding
Port Forwarding
DMZ
UPnP
Note
Further software upgrade for feature availability may be required

PHYSICAL
WiFi Transmission Power
CE:
< 20dBm(2.4GHz)
< 23dBm(5.15GHz~5.35GHz)
< 30dBm(5.47GHz~5.725GHz)
FCC:< 30dBm(2.4GHz & 5.15GHz~5.825GHz)
WiFi Reception Sensitivity
5G
11ac VHT20_MCS0:-82dBm, 11ac VHT20_MCS8: 59dBm
11ac VHT40_MCS0:-79dBm, 11ac VHT40_MCS9:-54dBm
11ac VHT80_MCS0:-76dBm, 11ac VHT80_MCS9:-51dBm
2.4GHz:
11n HT20_MCS0:-82dBm, 11n HT20_MCS7:-64dB
11n HT40_MCS0:-79dBm, 11n HT40_MCS7:-61dB
Environment
Operating Temperature: 0°C ~40°C
Storage Temperature: -10°C ~ 70°C
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 10%~90% non-condensing
Product Dimension (WxDxH)
20 x 20 x 3cm (without antennas)
In the box
1 x Wireless Router
1 x RJ-45 Networking Cable
1 x DC 12V Power Adapter
1 x Quick Installation
